How can I get a price quote for Siemens 8WH6001-0AH01?

You can request a fast quote for Siemens 8WH6001-0AH01 from Yılsa Engineering. Reference part number CEY-8EF3B02FD69F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WH6001-0AH01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WH6001-0AH01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WH6001-0AH01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

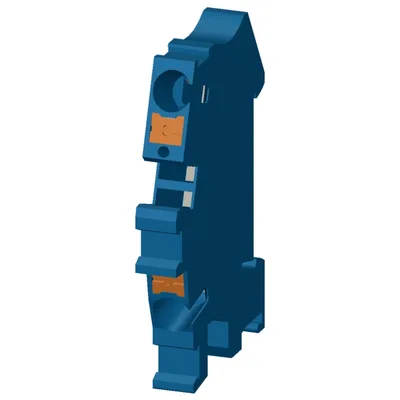

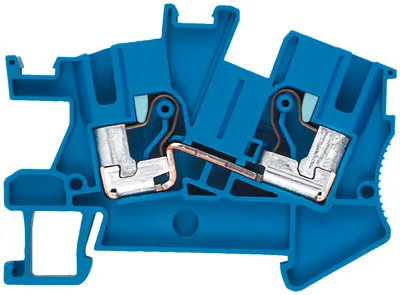

Siemens 8WH6001-0AH01

Terminal, iPo plug-in terminal, installation terminal, through-type terminal, 6 mm², blue

SiemensMFR # 8WH6001-0AH01SKU # CEY-8EF3B02FD69F

product brand nameSENTRON

product designationTerminal blocks

design of the productiPo through-type terminal

terminal contact spacing8 mm

operating voltage rated value800 V

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, iPo plug-in terminal, installation terminal, through-type terminal, 6 mm², blue

Siemens 8WH6001-0AH01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productiPo through-type terminal

design of terminal terminal levels internally linkedNo

General technical data

terminal contact spacing8 mm

operating voltage rated value800 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value41 A

Appearance

colorblue

Product details

product component required end cover plateYes

Number

number of terminal levels1

number of terminal points per terminal level2

Connections

minimum0.5 mm²

maximum10 mm²

minimum0.5 mm²

maximum10 mm²

with core end processing minimum0.5 mm²

with core end processing maximum6 mm²

without core end processing minimum0.5 mm²

without core end processing maximum10 mm²

type of connection 1plug terminal connection

type of connection 2plug terminal connection

position of the terminaltop

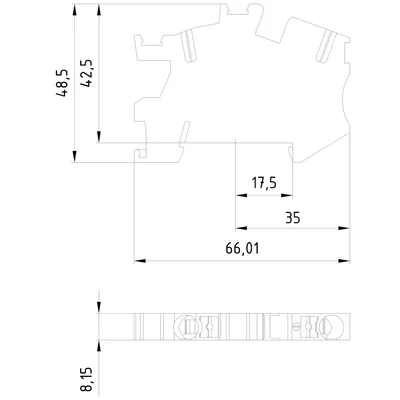

Mechanical Design

height48.5 mm

height with lowest-profile installation66 mm

depth48.5 mm

length66 mm

fastening methodTH35 DIN rail

Net Weight16 g

material of the insulating bodyOther

Environmental conditions

minimum-60 °C

maximum105 °C

Accessories 25

Genuine accessories that can be used with the Siemens 8WH6001-0AH01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8WH9020-6DC10	Aksesuar
8WH8112-4AA05	Aksesuar
8WH9200-0AD00	Aksesuar
8WH9020-6DF10	Aksesuar
8WH8140-4XA05	Aksesuar
8WH8140-4AB25	Aksesuar
8WH8140-4AB15	Aksesuar
8WH8140-4AB05	Aksesuar
8WH8120-4XA05	Aksesuar
8WH8120-4AB85	Aksesuar
8WH8120-4AB75	Aksesuar
8WH9004-1WA00	Aksesuar
8WH8120-4AB65	Aksesuar
8WH8120-4AB45	Aksesuar
8WH8120-4AB35	Aksesuar
8WH8120-4AB25	Aksesuar
8WH8120-4AB15	Aksesuar
8WH8120-4AB05	Aksesuar
8WH8110-4AA05	Aksesuar
8WH8113-1AA05	Aksesuar
8WH9020-6DE10	Aksesuar
8WH9020-6DD10	Aksesuar
8WH9020-6DL10	Aksesuar
8WH8120-4AB55	Aksesuar
8WH9143-0AH01	Aksesuar
