How can I get a price quote for Siemens 8WH3003-0AF00?

You can request a fast quote for Siemens 8WH3003-0AF00 from Yılsa Engineering. Reference part number CEY-8EF3B037D15D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WH3003-0AF00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WH3003-0AF00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WH3003-0AF00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

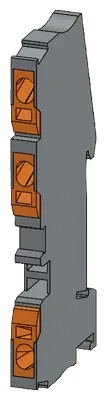

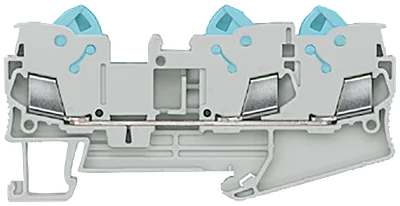

Siemens 8WH3003-0AF00

Terminal, quick-connect, 3 clamping points, through-type terminal, 2.5 mm², gray

SiemensMFR # 8WH3003-0AF00SKU # CEY-8EF3B037D15D

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

operating voltage rated value800 V

combustibility class according to UL 94V0

operational current rated value24 A

Have questions?Chat on WhatsApp

About This Product

Terminal, quick-connect, 3 clamping points, through-type terminal, 2.5 mm², gray

Siemens 8WH3003-0AF00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

product versionthrough-type terminal, for mounting on mounting rail acc. to IEC 60715

design of terminal terminal levels internally linkedNo

operating voltage rated value800 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value24 A

Appearance

colorgrey

Product details

product component required end cover plateYes

Number

number of terminal levels1

number of terminal points per terminal level3

Connections

minimum0.5 mm²

maximum2.5 mm²

without core end processing minimum0.5 mm²

without core end processing maximum2.5 mm²

type of connection 1plug-in terminal

type of connection 2plug-in terminal

position of the terminaltop

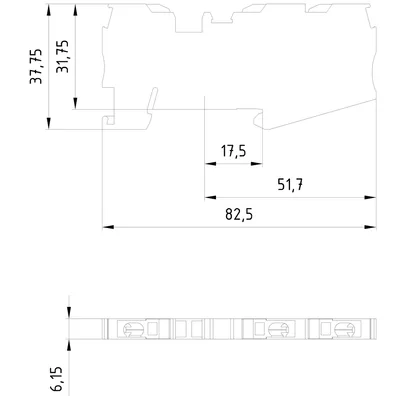

Mechanical Design

height82.53 mm

height with lowest-profile installation42.8 mm

depth37.8 mm

length83 mm

fastening methodTH35 DIN rail

Net Weight13 g

material of the insulating bodyOther

Environmental conditions

minimum-60 °C

maximum105 °C
