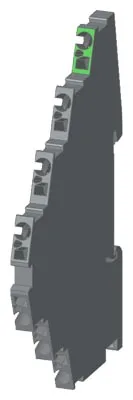

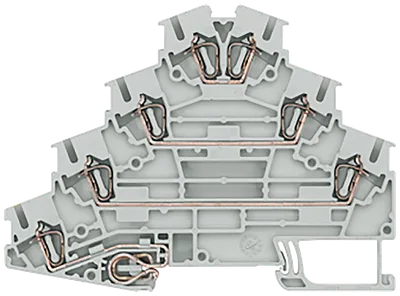

Siemens 8WH2040-4LF00

Terminal, spring-loaded terminal, four-tier, PE/L/L/L, 4 mm², gray

SiemensMFR # 8WH2040-4LF00SKU # CEY-8EF3B0327D39

product brand nameSENTRON

product designationTerminal blocks

design of the productfour-tier motor terminal

terminal contact spacing5.2 mm

operating voltage rated value800 V

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, spring-loaded terminal, four-tier, PE/L/L/L, 4 mm², gray

Siemens 8WH2040-4LF00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productfour-tier motor terminal

product versiontwo-tier terminal, for mounting on mounting rail acc. to IEC 60715

design of terminal terminal levels internally linkedNo

General technical data

terminal contact spacing5.2 mm

operating voltage rated value800 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value20 A

Appearance

colorgrey

Product details

product component required end cover plateYes

Number

number of terminal levels4

number of terminal points per terminal level2

Connections

minimum0.08 mm²

maximum4 mm²

with core end processing minimum0.14 mm²

with core end processing maximum2.5 mm²

without core end processing minimum0.08 mm²

without core end processing maximum2.5 mm²

type of connection 1spring-loaded terminal

type of connection 2spring-loaded terminal

position of the terminaltop

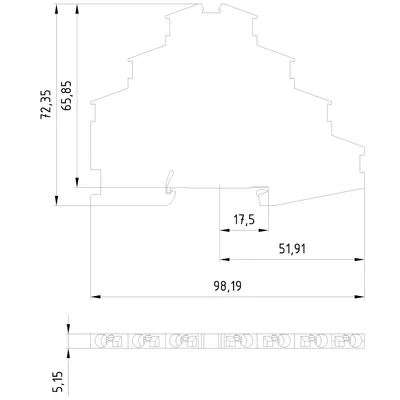

Mechanical Design

height98.2 mm

height with lowest-profile installation73.5 mm

depth72.3 mm

length99 mm

fastening methodTH35 DIN rail

Net Weight22 g

material of the insulating bodyOther

Environmental conditions

minimum-60 °C

maximum105 °C

Accessories 2

Genuine accessories that can be used with the Siemens 8WH2040-4LF00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
