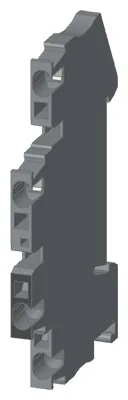

Siemens 8WH2025-0AE00

Terminal, spring-loaded terminal, two-tier, equipotential bonding, through-type terminal, 1.5 mm², gray

SiemensMFR # 8WH2025-0AE00SKU # CEY-8EF3B037D199

product brand nameSENTRON

product designationTerminal blocks

design of the producttwo-tier terminal

terminal contact spacing4.2 mm

operating voltage rated value500 V

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, spring-loaded terminal, two-tier, equipotential bonding, through-type terminal, 1.5 mm², gray

Siemens 8WH2025-0AE00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the producttwo-tier terminal

product versiontwo-tier terminal, for mounting on mounting rail acc. to IEC 60715

design of terminal terminal levels internally linkedYes

General technical data

terminal contact spacing4.2 mm

operating voltage rated value500 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value17.5 A

Appearance

colorgrey

Product details

product component required end cover plateYes

Number

number of terminal levels2

number of terminal points per terminal level2

Connections

minimum0.08 mm²

maximum1.5 mm²

with core end processing minimum0.14 mm²

with core end processing maximum1.5 mm²

without core end processing minimum0.08 mm²

without core end processing maximum1.5 mm²

type of connection 1spring-loaded terminal

type of connection 2spring-loaded terminal

position of the terminaltop

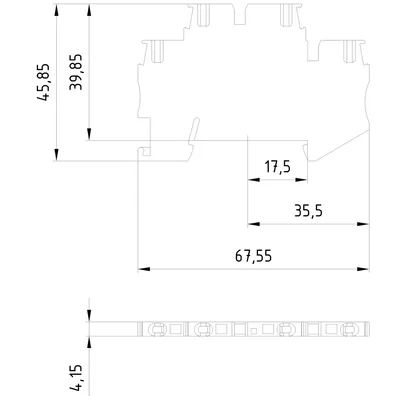

Mechanical Design

height67.58 mm

height with lowest-profile installation47.5 mm

depth45.9 mm

length68 mm

fastening methodTH35 DIN rail

Net Weight9 g

material of the insulating bodyOther

Environmental conditions

minimum-60 °C

maximum105 °C
