How can I get a price quote for Siemens 8WH2023-0CF07?

You can request a fast quote for Siemens 8WH2023-0CF07 from Yılsa Engineering. Reference part number CEY-8EF3B037D19A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WH2023-0CF07 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WH2023-0CF07 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WH2023-0CF07?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

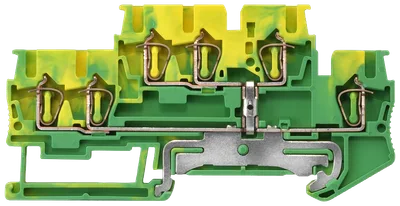

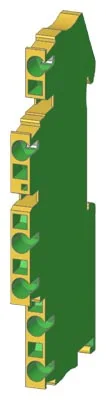

Siemens 8WH2023-0CF07

Terminal, spring-loaded terminal, two-tier, 3 clamping points, PE/PEN terminal, 2.5 mm², green-yellow

SiemensMFR # 8WH2023-0CF07SKU # CEY-8EF3B037D19A

product brand nameSENTRON

product designationTerminal blocks

design of the productPE through-type terminal

insulation materialPA

terminal contact spacing5.2 mm

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, spring-loaded terminal, two-tier, 3 clamping points, PE/PEN terminal, 2.5 mm², green-yellow

Siemens 8WH2023-0CF07

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productPE through-type terminal

General technical data

insulation materialPA

terminal contact spacing5.2 mm

Protection class

combustibility class according to UL 94V0

Appearance

colorgreen-yellow

Product details

product feature PEN functionNo

product component required end cover plateYes

Number

number of terminal levels2

number of terminal points per terminal level3

Connections

stripped length9 mm

minimum0.08 mm²

maximum4 mm²

minimum2.5 mm²

maximum0.08 mm²

with core end processing minimum0.14 mm²

with core end processing maximum2.5 mm²

without core end processing minimum0.08 mm²

without core end processing maximum2.5 mm²

type of connection 1spring-loaded terminal

type of connection 2spring-loaded terminal

position of the terminaltop

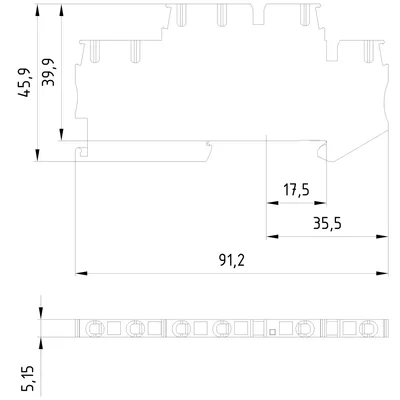

Mechanical Design

height91.18 mm

height with lowest-profile installation47.5 mm

depth45.85 mm

length91.5 mm

fastening methodTH35 DIN rail

Net Weight19 g

material of the insulating bodyOther

Environmental conditions

minimum105 °C

maximum105 °C

Accessories 21

Genuine accessories that can be used with the Siemens 8WH2023-0CF07 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8WH9020-6FC10	Aksesuar
8WH8120-7AA15	Aksesuar
8WH8111-7AA05	Aksesuar
8WH8110-7AA05	Aksesuar
8WH8113-6AA05	Aksesuar
8WH8140-5XA05	Aksesuar
8WH8140-5AB35	Aksesuar
8WH8140-5AB25	Aksesuar
8WH8140-5AB15	Aksesuar
8WH9070-0BA00	Aksesuar
8WH8140-5AB05	Aksesuar
8WH8120-5AB35	Aksesuar
8WH8120-5AB25	Aksesuar
8WH8120-5AB15	Aksesuar
8WH8120-5AB05	Aksesuar
8WH8110-5AA05	Aksesuar
8WH8112-4AA05	Aksesuar
8WH9200-0AD00	Aksesuar
8WH9020-6GC10	Aksesuar
8WH8120-5XA05	Aksesuar
8WH9000-2VA00	Aksesuar
