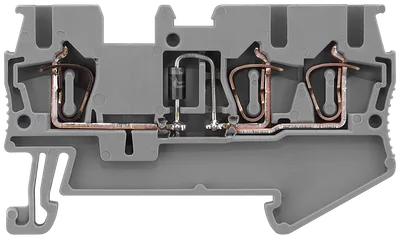

Siemens 8WH2003-5CF00
Terminal, spring-loaded terminal, 3 clamping points, diode terminal, 2.5 mm², gray
product brand nameSENTRON
product designationTerminal blocks
design of the productdiode terminal
component typediode
insulation materialothers
terminal contact spacing5.5 mm
About This Product
Terminal, spring-loaded terminal, 3 clamping points, diode terminal, 2.5 mm², gray
Siemens 8WH2003-5CF00
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product brand nameSENTRON
product designationTerminal blocks
design of the productdiode terminal
design of terminal terminal levels internally linkedNo
General technical data
component typediode
insulation materialothers
terminal contact spacing5.5 mm
operating voltage rated value800 V
Protection class
combustibility class according to UL 94V0
Appearance
colorgrey
Product details
product component required end cover plateYes
Number
number of terminal levels1
number of terminal points per terminal level3
Connections
minimum0.08 mm²
maximum4 mm²
maximum2.5 mm²
with core end processing minimum0.14 mm²
with core end processing maximum2.5 mm²
without core end processing minimum0.08 mm²
without core end processing maximum2.5 mm²
type of connection 1spring-loaded terminals
type of connection 2spring-loaded terminal
position of the terminaltop

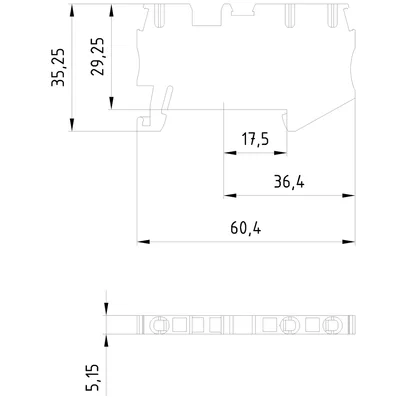

Mechanical Design
height with lowest-profile installation60.43 mm
depth35.3 mm
length60.5 mm
fastening methodTH35 DIN rail
Net Weight8 g
Environmental conditions
maximum-165 °C
