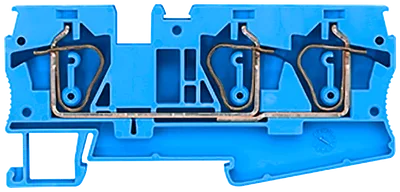

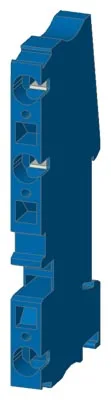

Siemens 8WH2003-0AH01

Terminal, spring-loaded terminal, 3 clamping points, through-type terminal, 6 mm², blue

SiemensMFR # 8WH2003-0AH01SKU # CEY-8EF3B037D1C6

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

terminal contact spacing8.2 mm

operating voltage rated value1 000 V

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, spring-loaded terminal, 3 clamping points, through-type terminal, 6 mm², blue

Siemens 8WH2003-0AH01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

product versionthrough-type terminal, for mounting on mounting rail acc. to IEC 60715

design of terminal terminal levels internally linkedNo

General technical data

terminal contact spacing8.2 mm

operating voltage rated value1 000 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value41 A

Appearance

colorblue

Product details

product component required end cover plateYes

Number

number of terminal levels1

number of terminal points per terminal level3

Connections

minimum0.2 mm²

maximum10 mm²

minimum2.5 mm²

maximum0.2 mm²

with core end processing minimum0.25 mm²

with core end processing maximum6 mm²

without core end processing minimum0.2 mm²

without core end processing maximum10 mm²

type of connection 1spring-loaded terminal

type of connection 2spring-loaded terminal

position of the terminaltop

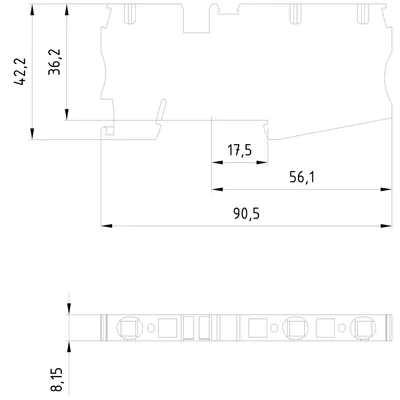

Mechanical Design

height90.5 mm

depth42.2 mm

fastening methodTH35 DIN rail

Net Weight23 g

material of the insulating bodyOther

Environmental conditions

minimum-60 °C

maximum105 °C
