How can I get a price quote for Siemens 8WH2003-0AG01?

You can request a fast quote for Siemens 8WH2003-0AG01 from Yılsa Engineering. Reference part number CEY-8EF3B02FC952. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WH2003-0AG01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WH2003-0AG01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WH2003-0AG01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

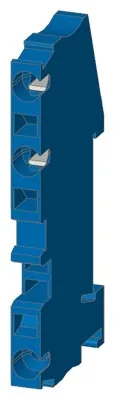

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 8WH2003-0AG01

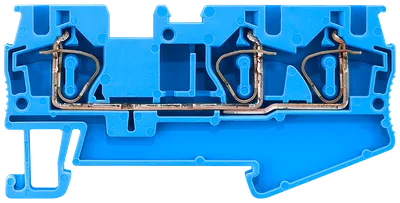

Terminal, spring-loaded terminal, 3 clamping points, through-type terminal, 4 mm², blue

SiemensMFR # 8WH2003-0AG01SKU # CEY-8EF3B02FC952

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

terminal contact spacing6.2 mm

operating voltage rated value800 V

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, spring-loaded terminal, 3 clamping points, through-type terminal, 4 mm², blue

Siemens 8WH2003-0AG01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

product versionthrough-type terminal, for mounting on mounting rail acc. to IEC 60715

design of terminal terminal levels internally linkedNo

General technical data

terminal contact spacing6.2 mm

operating voltage rated value800 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value32 A

Appearance

colorblue

Product details

product component required end cover plateYes

Number

number of terminal levels1

number of terminal points per terminal level3

Connections

minimum0.08 mm²

maximum6 mm²

with core end processing minimum0.14 mm²

with core end processing maximum4 mm²

without core end processing minimum0.08 mm²

without core end processing maximum4 mm²

type of connection 1spring-loaded terminal

type of connection 2spring-loaded terminal

position of the terminaltop

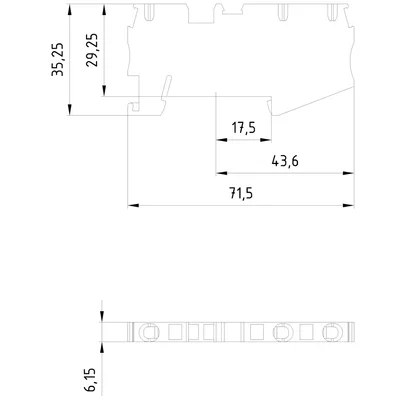

Mechanical Design

height71.53 mm

depth35.3 mm

fastening methodTH35 DIN rail

Net Weight12 g

material of the insulating bodyOther

Environmental conditions

minimum-60 °C

maximum105 °C

Accessories 40

Genuine accessories that can be used with the Siemens 8WH2003-0AG01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8WH9020-6CC10	Aksesuar
8WH8120-3XA05	Aksesuar
8WH8140-3AB05	Aksesuar
8WH8140-3AB15	Aksesuar
8WH8140-3AB25	Aksesuar
8WH8140-3AB35	Aksesuar
8WH8140-3AB45	Aksesuar
8WH8140-3AB55	Aksesuar
8WH8120-3AB85	Aksesuar
8WH8140-3AB65	Aksesuar
8WH8140-3AB85	Aksesuar
8WH8140-3XA05	Aksesuar
8WH9003-0GA00	Aksesuar
8WH9020-6CF10	Aksesuar
8WH9020-6CS10	Aksesuar
8WH9020-6CT10	Aksesuar
8WH9063-5AA06	Aksesuar
8WH8140-3AB75	Aksesuar
8WH8120-3AB75	Aksesuar
8WH8120-3AB65	Aksesuar
8WH8120-3AB55	Aksesuar
8WH9020-6CD10	Aksesuar
8WH9020-6CE10	Aksesuar
8WH9020-6CL10	Aksesuar
8WH9020-0AC10	Aksesuar
8WH9020-0BC10	Aksesuar
8WH9020-0CC10	Aksesuar
8WH9020-0EC10	Aksesuar
8WH9020-0FC10	Aksesuar
8WH9200-0AC00	Aksesuar
8WH8112-2AA05	Aksesuar
8WH8113-1AA05	Aksesuar
8WH8110-3AA05	Aksesuar
8WH8120-3AB05	Aksesuar
8WH8120-3AB15	Aksesuar
8WH8120-3AB25	Aksesuar
8WH8120-3AB35	Aksesuar
8WH8120-3AB45	Aksesuar
8WH9070-0GA00	Aksesuar
8WH9003-2GA00	Aksesuar
