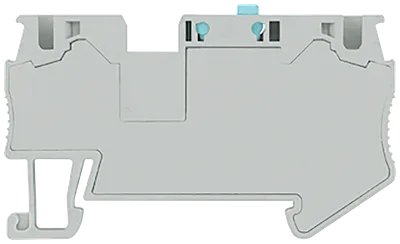

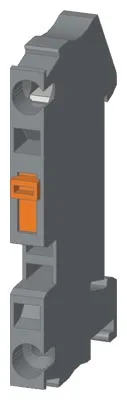

Siemens 8WH2000-6CG00

Terminal, spring-loaded terminal, isolating blade terminal, 4 mm², gray

SiemensMFR # 8WH2000-6CG00SKU # CEY-8EF3B037D1CE

product brand nameSENTRON

product designationTerminal blocks

design of the productisolating blade terminal

type of longitudinal separationothers

type of lateral separationwithout

insulation materialPA

Have questions?Chat on WhatsApp

About This Product

Terminal, spring-loaded terminal, isolating blade terminal, 4 mm², gray

Siemens 8WH2000-6CG00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productisolating blade terminal

type of longitudinal separationothers

type of lateral separationwithout

General technical data

insulation materialPA

terminal contact spacing6.2 mm

operating voltage rated value400 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value20 A

Appearance

colorgrey

Product details

test socketNo

Number

number of terminal levels1

number of terminal points per terminal level2

Connections

minimum0.08 mm²

maximum6 mm²

with core end processing minimum0.14 mm²

with core end processing maximum4 mm²

without core end processing minimum0.08 mm²

without core end processing maximum4 mm²

type of connection 1spring-loaded terminal

type of connection 2spring-loaded terminal

position of the terminaltop

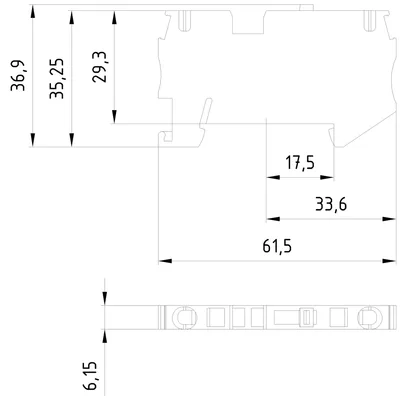

Mechanical Design

height with lowest-profile installation61.53 mm

depth36.5 mm

length61.5 mm

fastening methodTH35 DIN rail

Net Weight10 g

material of the insulating bodyOther

Environmental conditions

minimum-60 °C

maximum-105 °C
