How can I get a price quote for Siemens 8WH2000-6AG00?

You can request a fast quote for Siemens 8WH2000-6AG00 from Yılsa Engineering. Reference part number CEY-8EF3B037D1D0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WH2000-6AG00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WH2000-6AG00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WH2000-6AG00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

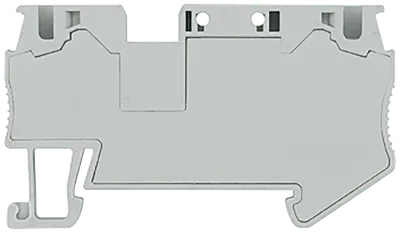

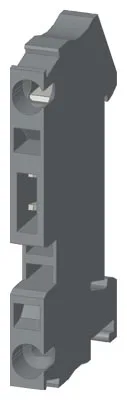

Siemens 8WH2000-6AG00

More information on contact persons: www.siemens.com/lowvoltage/contact terminal, isolating terminal, 4 mm², gray

SiemensMFR # 8WH2000-6AG00SKU # CEY-8EF3B037D1D0

product brand nameSENTRON

product designationTerminal blocks

design of the productisolating terminal

type of longitudinal separationothers

type of lateral separationwithout

insulation materialPA

Have questions?Chat on WhatsApp

About This Product

More information on contact persons: www.siemens.com/lowvoltage/contact terminal, isolating terminal, 4 mm², gray

Siemens 8WH2000-6AG00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productisolating terminal

type of longitudinal separationothers

type of lateral separationwithout

General technical data

insulation materialPA

terminal contact spacing6.2 mm

operating voltage rated value500 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value20 A

Appearance

colorgrey

Product details

test socketNo

Number

number of terminal levels1

number of terminal points per terminal level2

Connections

minimum0.08 mm²

maximum6 mm²

with core end processing minimum0.14 mm²

with core end processing maximum4 mm²

without core end processing minimum0.08 mm²

without core end processing maximum4 mm²

type of connection 1spring-loaded terminal

type of connection 2spring-loaded terminal

position of the terminaltop

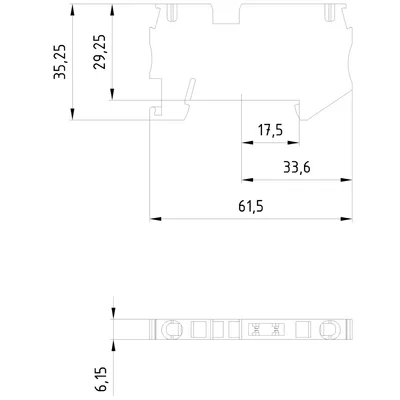

Mechanical Design

height with lowest-profile installation61.53 mm

depth36.5 mm

length61.5 mm

fastening methodTH35 DIN rail

Net Weight10 g

material of the insulating bodyOther

Environmental conditions

minimum-60 °C

maximum-105 °C

Accessories 8

Genuine accessories that can be used with the Siemens 8WH2000-6AG00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8WH9070-0AA00	Aksesuar
8WH9000-2GA00	Aksesuar
8WH9020-8AB00	Aksesuar
8WH9040-0BB00	Aksesuar
8WH9040-0DB04	Aksesuar
8WH9040-3AB08	Aksesuar
8WH9040-3CB08	Aksesuar
8WH9040-3DB08	Aksesuar
