How can I get a price quote for Siemens 8WH2000-1MG08?

You can request a fast quote for Siemens 8WH2000-1MG08 from Yılsa Engineering. Reference part number CEY-8EF3B037D1D3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WH2000-1MG08 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WH2000-1MG08 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WH2000-1MG08?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

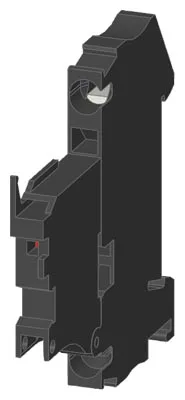

Siemens 8WH2000-1MG08

Terminal, spring-loaded terminal, fuse terminal for G fuse, with illumin. display, 4 mm², black

SiemensMFR # 8WH2000-1MG08SKU # CEY-8EF3B037D1D3

product brand nameSENTRON

product designationTerminal blocks

design of the productfuse terminal

type of light source as defect indicatorLED

design of the fuse linkglass fuse 5x20 mm

design of fuse holderswivel

Have questions?Chat on WhatsApp

About This Product

Terminal, spring-loaded terminal, fuse terminal for G fuse, with illumin. display, 4 mm², black

Siemens 8WH2000-1MG08

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productfuse terminal

type of light source as defect indicatorLED

design of the fuse linkglass fuse 5x20 mm

design of fuse holderswivel

General technical data

insulation materialPA

terminal contact spacing6.2 mm

Supply voltage

operating voltage rated value250 V

type of voltage for supply of the defect indicatorothers

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value6.3 A

Appearance

colorblack

Product details

product component required end cover plateNo

Number

number of terminal levels1

Connections

minimum0.08 mm²

maximum0.08 mm²

maximum4 mm²

with core end processing minimum4 mm²

with core end processing maximum4 mm²

without core end processing minimum0.08 mm²

without core end processing maximum4 mm²

type of connection 1spring-loaded terminals

type of connection 2spring-loaded terminal

position of the terminaltop

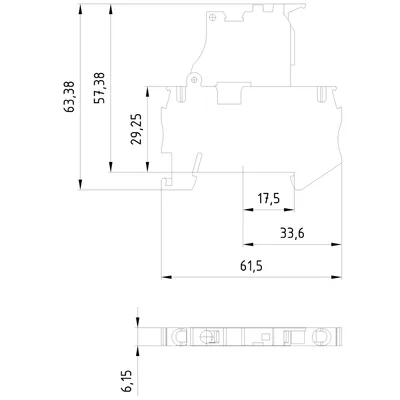

Mechanical Design

height with lowest-profile installation61.53 mm

depth63.38 mm

length61.5 mm

fastening methodTH35 DIN rail

Net Weight15 g

material of the insulating bodyOther

Environmental conditions

minimum105 °C

maximum105 °C

Accessories 1

Genuine accessories that can be used with the Siemens 8WH2000-1MG08 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
