How can I get a price quote for Siemens 8WH2000-0CG07?

You can request a fast quote for Siemens 8WH2000-0CG07 from Yılsa Engineering. Reference part number CEY-8EF3B03117CA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WH2000-0CG07 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WH2000-0CG07 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WH2000-0CG07?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

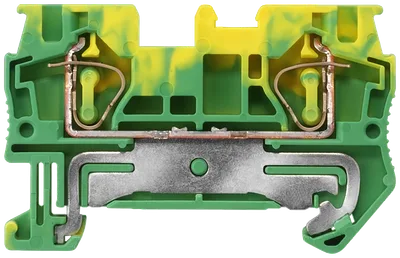

Siemens 8WH2000-0CG07

Terminal, spring-loaded terminal, PE/PEN terminal, 4 mm², green-yellow

SiemensMFR # 8WH2000-0CG07SKU # CEY-8EF3B03117CA

product brand nameSENTRON

product designationTerminal blocks

design of the productPE through-type terminal

insulation materialPA

terminal contact spacing6.2 mm

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, spring-loaded terminal, PE/PEN terminal, 4 mm², green-yellow

Siemens 8WH2000-0CG07

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productPE through-type terminal

General technical data

insulation materialPA

terminal contact spacing6.2 mm

Protection class

combustibility class according to UL 94V0

Appearance

colorgreen-yellow

Product details

product feature PEN functionNo

product component required end cover plateYes

Number

number of terminal levels1

number of terminal points per terminal level2

Connections

stripped length9 mm

minimum0.08 mm²

maximum6 mm²

minimum4 mm²

maximum0.08 mm²

with core end processing minimum0.14 mm²

with core end processing maximum4 mm²

without core end processing minimum0.08 mm²

without core end processing maximum4 mm²

type of connection 1spring-loaded terminal

type of connection 2spring-loaded terminal

position of the terminaltop

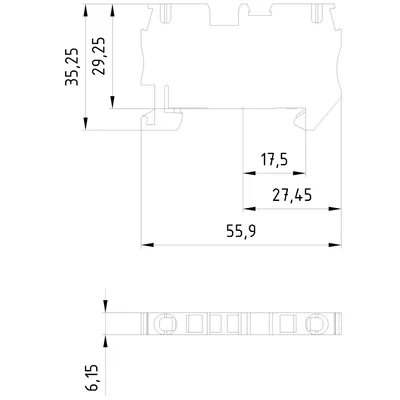

Mechanical Design

height55.9 mm

height with lowest-profile installation36.8 mm

depth35.25 mm

length56 mm

fastening methodTH35 DIN rail

Net Weight13 g

material of the insulating bodyOther

Environmental conditions

minimum105 °C

maximum105 °C

Accessories 4

Genuine accessories that can be used with the Siemens 8WH2000-0CG07 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
