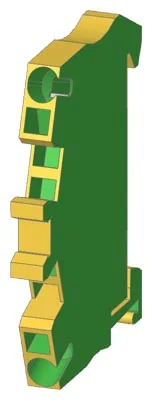

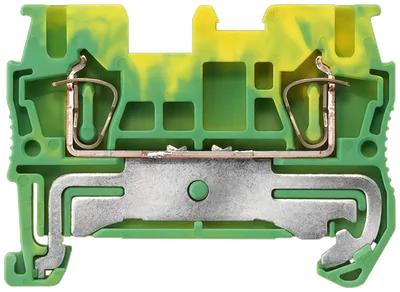

Siemens 8WH2000-0CF07

Terminal, spring-loaded terminal, PE/PEN terminal, 2.5 mm², green-yellow

SiemensMFR # 8WH2000-0CF07SKU # CEY-8EF3B03117C8

product brand nameSENTRON

product designationTerminal blocks

design of the productPE through-type terminal

insulation materialPA

terminal contact spacing5.2 mm

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, spring-loaded terminal, PE/PEN terminal, 2.5 mm², green-yellow

Siemens 8WH2000-0CF07

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productPE through-type terminal

General technical data

insulation materialPA

terminal contact spacing5.2 mm

Protection class

combustibility class according to UL 94V0

Appearance

colorgreen-yellow

Product details

product feature PEN functionNo

product component required end cover plateYes

Number

number of terminal levels1

number of terminal points per terminal level2

Connections

stripped length9 mm

minimum0.08 mm²

maximum4 mm²

minimum2.5 mm²

maximum0.08 mm²

with core end processing minimum0.14 mm²

with core end processing maximum2.5 mm²

without core end processing minimum0.08 mm²

without core end processing maximum2.5 mm²

type of connection 1spring-loaded terminal

type of connection 2spring-loaded terminal

position of the terminaltop

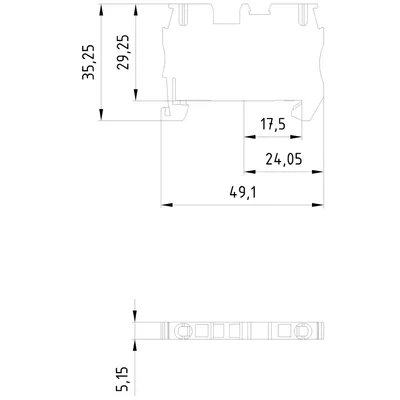

Mechanical Design

height49.13 mm

height with lowest-profile installation36.8 mm

depth35.25 mm

length48.5 mm

fastening methodTH35 DIN rail

Net Weight10 g

material of the insulating bodyOther

Environmental conditions

minimum105 °C

maximum105 °C
