How can I get a price quote for Siemens 8WH2000-0AM00?

You can request a fast quote for Siemens 8WH2000-0AM00 from Yılsa Engineering. Reference part number CEY-8EF3B037D1E3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WH2000-0AM00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WH2000-0AM00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WH2000-0AM00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

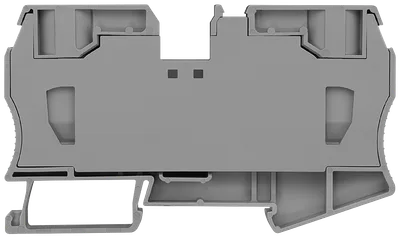

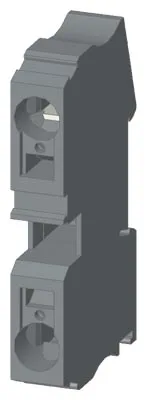

Siemens 8WH2000-0AM00

Terminal, spring-loaded terminal, through-type terminal, 35 mm², gray

SiemensMFR # 8WH2000-0AM00SKU # CEY-8EF3B037D1E3

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

terminal contact spacing16 mm

operating voltage rated value1 000 V

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, spring-loaded terminal, through-type terminal, 35 mm², gray

Siemens 8WH2000-0AM00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

product versionthrough-type terminal, for mounting on mounting rail acc. to IEC 60715

design of terminal terminal levels internally linkedNo

General technical data

terminal contact spacing16 mm

operating voltage rated value1 000 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value125 A

Appearance

colorgrey

Product details

product component required end cover plateNo

Number

number of terminal levels1

number of terminal points per terminal level2

Connections

minimum2.5 mm²

maximum35 mm²

with core end processing minimum2.5 mm²

with core end processing maximum35 mm²

without core end processing minimum2.5 mm²

without core end processing maximum35 mm²

type of connection 1spring-loaded terminal

type of connection 2spring-loaded terminal

position of the terminaltop

Mechanical Design

height99.9 mm

depth58.5 mm

fastening methodTH35 DIN rail

Net Weight85 g

material of the insulating bodyOther

Environmental conditions

minimum-60 °C

maximum105 °C

Accessories 12

Genuine accessories that can be used with the Siemens 8WH2000-0AM00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8WH9020-6GC10	Aksesuar
8WH9200-0AD00	Aksesuar
8WH8120-5AB05	Aksesuar
8WH8120-5AB15	Aksesuar
8WH8120-5AB25	Aksesuar
8WH8120-5AB35	Aksesuar
8WH8140-5XA05	Aksesuar
8WH9020-0DC10	Aksesuar
8WH8110-7AA05	Aksesuar
8WH8111-7AA05	Aksesuar
8WH8120-7AA15	Aksesuar
8WH9067-5AA06	Aksesuar
