How can I get a price quote for Siemens 8WH1025-0AG00?

You can request a fast quote for Siemens 8WH1025-0AG00 from Yılsa Engineering. Reference part number CEY-8EF3B037D20A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WH1025-0AG00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WH1025-0AG00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WH1025-0AG00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

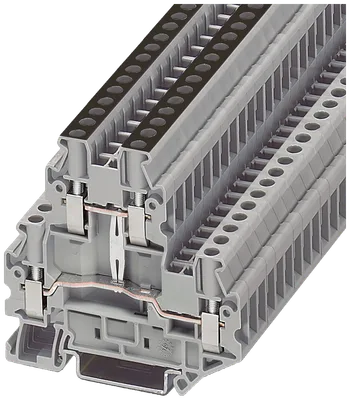

Photo may not represent actual item. Refer to name and product specs for all details.

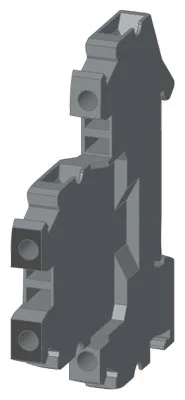

Siemens 8WH1025-0AG00

Terminal, screw terminal, two-tier, equipotential bonding, through-type terminal, 4 mm², gray

SiemensMFR # 8WH1025-0AG00SKU # CEY-8EF3B037D20A

product brand nameSENTRON

product designationTerminal blocks

design of the producttwo-tier terminal

terminal contact spacing6 mm

operating voltage rated value800 V

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, screw terminal, two-tier, equipotential bonding, through-type terminal, 4 mm², gray

Siemens 8WH1025-0AG00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the producttwo-tier terminal

product versiontwo-tier terminal internally bridged for mounting on mounting rail acc. to IEC 60715

design of terminal terminal levels internally linkedYes

General technical data

terminal contact spacing6 mm

operating voltage rated value800 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value30 A

Appearance

colorgrey

Product details

product component required end cover plateYes

Number

number of terminal levels2

number of terminal points per terminal level2

Connections

minimum0.14 mm²

maximum6 mm²

minimum1.5 mm²

maximum0.14 mm²

with core end processing minimum0.14 mm²

with core end processing maximum4 mm²

without core end processing minimum0.14 mm²

without core end processing maximum6 mm²

minimum0.6 N·m

maximum1 N·m

type of connection 1screw-type terminal

type of connection 2screw-type terminal

position of the terminallateral

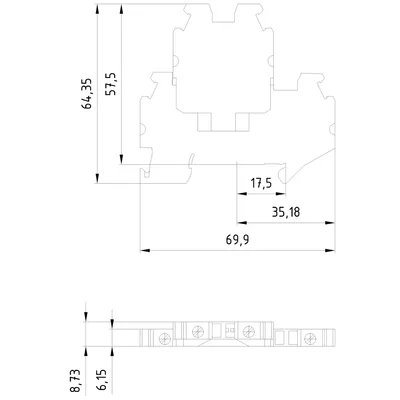

Mechanical Design

height69.9 mm

height with lowest-profile installation65 mm

depth64.3 mm

length70 mm

fastening methodTH35 DIN rail

Net Weight20 g

material of the insulating bodyPA

Environmental conditions

minimum-60 °C

maximum105 °C

Accessories 39

Genuine accessories that can be used with the Siemens 8WH1025-0AG00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8WH9000-1QA00	Aksesuar
8WH8140-2AB55	Aksesuar
8WH8140-2AB65	Aksesuar
8WH8140-2AB75	Aksesuar
8WH8140-2AB85	Aksesuar
8WH8140-2XA05	Aksesuar
8WH9020-0AC10	Aksesuar
8WH9020-0BC10	Aksesuar
8WH8140-2AB45	Aksesuar
8WH9020-0CC10	Aksesuar
8WH9020-0FC10	Aksesuar
8WH9020-6BF10	Aksesuar
8WH9020-6BS10	Aksesuar
8WH9020-6BT10	Aksesuar
8WH9200-0AC00	Aksesuar
8WH8112-2AA05	Aksesuar
8WH8113-1AA05	Aksesuar
8WH9020-0EC10	Aksesuar
8WH9070-6FA00	Aksesuar
8WH8140-2AB35	Aksesuar
8WH8140-2AB15	Aksesuar
8WH9020-6BC10	Aksesuar
8WH9020-6BL10	Aksesuar
8WH9020-6BD10	Aksesuar
8WH9020-6BE10	Aksesuar
8WH8110-2AA05	Aksesuar
8WH8120-2AB05	Aksesuar
8WH8120-2AB15	Aksesuar
8WH8140-2AB25	Aksesuar
8WH8120-2AB25	Aksesuar
8WH8120-2AB45	Aksesuar
8WH8120-2AB55	Aksesuar
8WH8120-2AB65	Aksesuar
8WH8120-2AB75	Aksesuar
8WH8120-2AB85	Aksesuar
8WH8120-2XA05	Aksesuar
8WH8140-2AB05	Aksesuar
8WH8120-2AB35	Aksesuar
8WH9160-0AA00	Aksesuar
