How can I get a price quote for Siemens 8WH1020-0CF07?

You can request a fast quote for Siemens 8WH1020-0CF07 from Yılsa Engineering. Reference part number CEY-8EF3B037D216. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WH1020-0CF07 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WH1020-0CF07 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WH1020-0CF07?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

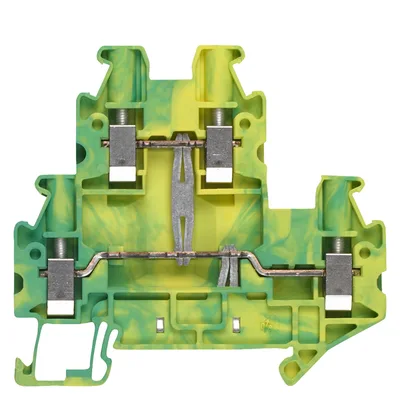

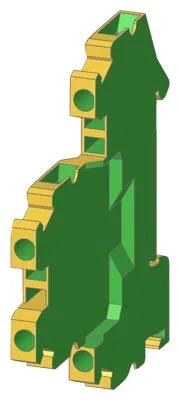

Siemens 8WH1020-0CF07

More information on contact persons: www.siemens.com/lowvoltage/contact two-tier, PE/PEN terminal, 2.5 mm², green-yellow

SiemensMFR # 8WH1020-0CF07SKU # CEY-8EF3B037D216

product brand nameSENTRON

product designationTerminal blocks

design of the producttwo-tier terminal

insulation materialPA

terminal contact spacing5.2 mm

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

More information on contact persons: www.siemens.com/lowvoltage/contact two-tier, PE/PEN terminal, 2.5 mm², green-yellow

Siemens 8WH1020-0CF07

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the producttwo-tier terminal

General technical data

insulation materialPA

terminal contact spacing5.2 mm

Protection class

combustibility class according to UL 94V0

Appearance

colorgreen-yellow

Product details

product feature PEN functionNo

product component required end cover plateYes

Number

number of terminal levels2

number of terminal points per terminal level2

Connections

stripped length9 mm

minimum0.14 mm²

maximum4 mm²

minimum4 mm²

maximum0.14 mm²

with core end processing minimum0.14 mm²

with core end processing maximum2.5 mm²

without core end processing minimum0.14 mm²

without core end processing maximum4 mm²

minimum0.6 N·m

maximum1 N·m

type of connection 1screw-type terminal

type of connection 2screw-type terminal

position of the terminallateral

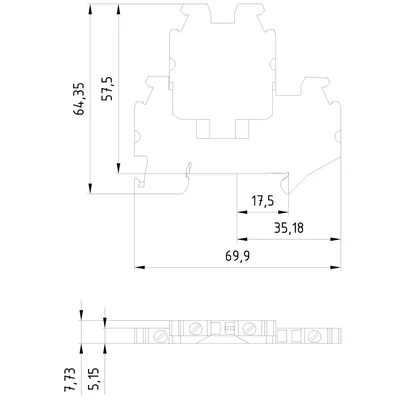

Mechanical Design

height69.9 mm

height with lowest-profile installation65 mm

depth64.35 mm

length70 mm

fastening methodTH35 DIN rail

Net Weight20 g

material of the insulating bodyPA

Environmental conditions

minimum105 °C

maximum105 °C
