How can I get a price quote for Siemens 8WH1000-7AH00?

You can request a fast quote for Siemens 8WH1000-7AH00 from Yılsa Engineering. Reference part number CEY-8EF3B037D225. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WH1000-7AH00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WH1000-7AH00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WH1000-7AH00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

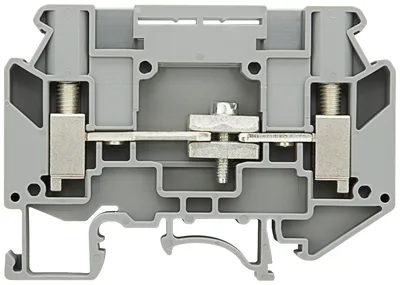

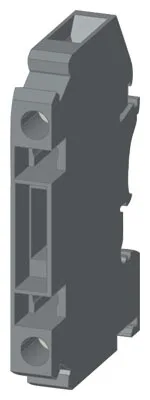

Siemens 8WH1000-7AH00

Terminal, screw terminal, measuring transformer terminal, 6 mm², gray

SiemensMFR # 8WH1000-7AH00SKU # CEY-8EF3B037D225

product brand nameSENTRON

product designationTerminal blocks

design of the productisolating blade terminal

insulation materialPA

terminal contact spacing8 mm

operating voltage rated value500 V

Have questions?Chat on WhatsApp

About This Product

Terminal, screw terminal, measuring transformer terminal, 6 mm², gray

Siemens 8WH1000-7AH00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productisolating blade terminal

General technical data

insulation materialPA

terminal contact spacing8 mm

operating voltage rated value500 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value41 A

Appearance

colorgrey

Number

number of terminal levels1

number of terminal points per terminal level2

Connections

minimum0.5 mm²

maximum10 mm²

minimum2.5 mm²

with core end processing minimum0.5 mm²

with core end processing maximum6 mm²

without core end processing minimum0.5 mm²

without core end processing maximum6 mm²

type of connection 1screw-type terminal

type of connection 2screw-type terminal

position of the terminallateral

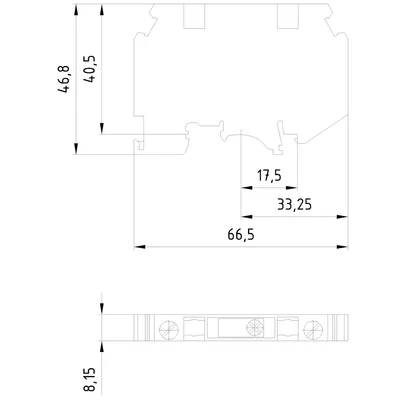

Mechanical Design

height with lowest-profile installation66.5 mm

depth48 mm

length67 mm

fastening methodTH35 DIN rail

Net Weight22 g

material of the insulating bodyPA

Environmental conditions

minimum-60 °C

maximum-105 °C

Accessories 23

Genuine accessories that can be used with the Siemens 8WH1000-7AH00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8WH9020-6DC10	Aksesuar
8WH9020-6DF10	Aksesuar
8WH8140-4XA05	Aksesuar
8WH8140-4AB25	Aksesuar
8WH8140-4AB15	Aksesuar
8WH8140-4AB05	Aksesuar
8WH8120-4XA05	Aksesuar
8WH8120-4AB85	Aksesuar
8WH8120-4AB75	Aksesuar
8WH8120-4AB65	Aksesuar
8WH9200-0AD00	Aksesuar
8WH8120-4AB55	Aksesuar
8WH8120-4AB35	Aksesuar
8WH8120-4AB25	Aksesuar
8WH8120-4AB15	Aksesuar
8WH8120-4AB05	Aksesuar
8WH8110-4AA05	Aksesuar
8WH8113-1AA05	Aksesuar
8WH9020-6DE10	Aksesuar
8WH9020-6DD10	Aksesuar
8WH9020-6DL10	Aksesuar
8WH8120-4AB45	Aksesuar
8WH8112-4AA05	Aksesuar
