How can I get a price quote for Siemens 8WH1000-0AS01?

You can request a fast quote for Siemens 8WH1000-0AS01 from Yılsa Engineering. Reference part number CEY-8EF3B02F9BF3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WH1000-0AS01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WH1000-0AS01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WH1000-0AS01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

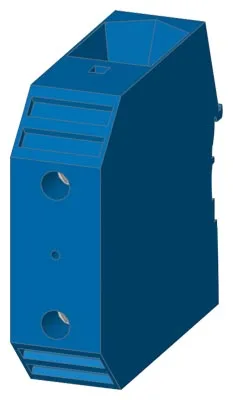

Siemens 8WH1000-0AS01

Terminal, screw terminal, through-type terminal, 150 mm², blue

SiemensMFR # 8WH1000-0AS01SKU # CEY-8EF3B02F9BF3

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

terminal contact spacing31 mm

operating voltage rated value1 000 V

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, screw terminal, through-type terminal, 150 mm², blue

Siemens 8WH1000-0AS01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

product versionthrough-type terminal, for mounting on mounting rail acc. to IEC 60715

design of terminal terminal levels internally linkedNo

General technical data

terminal contact spacing31 mm

operating voltage rated value1 000 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value309 A

Appearance

colorblue

Product details

product component required end cover plateNo

Number

number of terminal levels1

number of terminal points per terminal level2

Connections

minimum35 mm²

maximum150 mm²

minimum50 mm²

maximum25 mm²

with core end processing minimum50 mm²

with core end processing maximum150 mm²

without core end processing minimum50 mm²

without core end processing maximum150 mm²

minimum25 N·m

maximum30 N·m

type of connection 1screw-type terminal

type of connection 2screw-type terminal

position of the terminallateral

Mechanical Design

height105.2 mm

height with lowest-profile installation26 mm

depth110.8 mm

length100 mm

fastening methodTH35 DIN rail

Net Weight363 g

material of the insulating bodyPA

Environmental conditions

minimum-60 °C

maximum105 °C

Accessories 6

Genuine accessories that can be used with the Siemens 8WH1000-0AS01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
