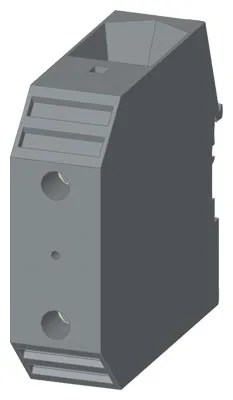

Siemens 8WH1000-0AS00

Terminal, screw terminal, through-type terminal, 150 mm², gray

SiemensMFR # 8WH1000-0AS00SKU # CEY-8EF3B0308576

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

terminal contact spacing31 mm

operating voltage rated value1 000 V

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, screw terminal, through-type terminal, 150 mm², gray

Siemens 8WH1000-0AS00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

product versionthrough-type terminal, for mounting on mounting rail acc. to IEC 60715

design of terminal terminal levels internally linkedNo

General technical data

terminal contact spacing31 mm

operating voltage rated value1 000 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value309 A

Appearance

colorgrey

Product details

product component required end cover plateNo

Number

number of terminal levels1

number of terminal points per terminal level2

Connections

minimum35 mm²

maximum150 mm²

minimum50 mm²

maximum25 mm²

with core end processing minimum50 mm²

with core end processing maximum150 mm²

without core end processing minimum50 mm²

without core end processing maximum150 mm²

minimum25 N·m

maximum30 N·m

type of connection 1screw-type terminal

type of connection 2screw-type terminal

position of the terminallateral

Mechanical Design

height105.2 mm

height with lowest-profile installation26 mm

depth110.8 mm

length100 mm

fastening methodTH35 DIN rail

Net Weight361 g

material of the insulating bodyPA

Environmental conditions

minimum-60 °C

maximum105 °C
