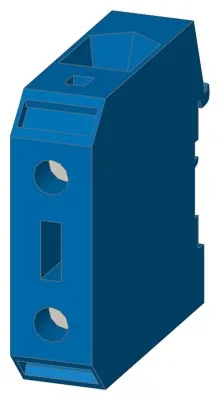

Siemens 8WH1000-0AN01

Terminal, screw terminal, through-type terminal, 50 mm², blue

SiemensMFR # 8WH1000-0AN01SKU # CEY-8EF3B030857A

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

terminal contact spacing20 mm

operating voltage rated value1 000 V

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, screw terminal, through-type terminal, 50 mm², blue

Siemens 8WH1000-0AN01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

product versionthrough-type terminal, for mounting on mounting rail acc. to IEC 60715

design of terminal terminal levels internally linkedNo

General technical data

terminal contact spacing20 mm

operating voltage rated value1 000 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value150 A

Appearance

colorblue

Product details

product component required end cover plateNo

Number

number of terminal levels1

number of terminal points per terminal level2

Connections

minimum16 mm²

maximum70 mm²

minimum16 mm²

maximum10 mm²

with core end processing minimum25 mm²

with core end processing maximum50 mm²

without core end processing minimum25 mm²

without core end processing maximum50 mm²

minimum6 N·m

maximum8 N·m

type of connection 1screw-type terminal

type of connection 2screw-type terminal

position of the terminallateral

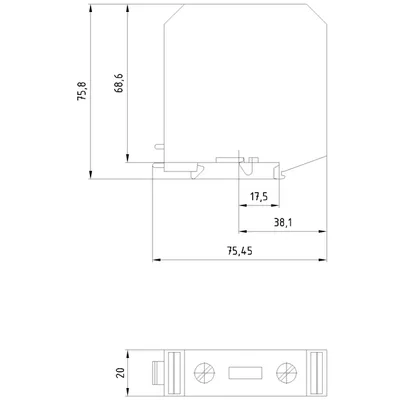

Mechanical Design

height75.45 mm

height with lowest-profile installation26 mm

depth75.8 mm

length71 mm

fastening methodTH35 DIN rail

Net Weight122 g

material of the insulating bodyPA

Environmental conditions

minimum-60 °C

maximum105 °C
