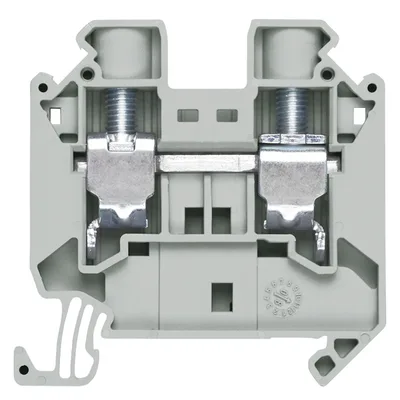

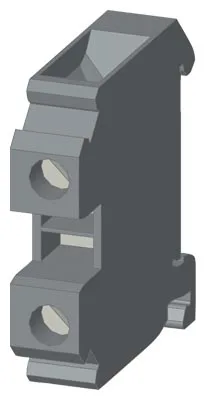

Siemens 8WH1000-0AK00

Terminal, screw terminal, through-type terminal, 16 mm², gray

SiemensMFR # 8WH1000-0AK00SKU # CEY-8EF3B037D243

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

terminal contact spacing12 mm

operating voltage rated value1 000 V

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, screw terminal, through-type terminal, 16 mm², gray

Siemens 8WH1000-0AK00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

product versionthrough-type terminal, for mounting on mounting rail acc. to IEC 60715

design of terminal terminal levels internally linkedNo

General technical data

terminal contact spacing12 mm

operating voltage rated value1 000 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value76 A

Appearance

colorgrey

Product details

product component required end cover plateYes

Number

number of terminal levels1

number of terminal points per terminal level2

Connections

minimum1.5 mm²

maximum25 mm²

minimum6 mm²

maximum1 mm²

with core end processing minimum1 mm²

with core end processing maximum16 mm²

without core end processing minimum1.5 mm²

without core end processing maximum25 mm²

minimum2.5 N·m

maximum3 N·m

type of connection 1screw-type terminal

type of connection 2screw-type terminal

position of the terminallateral

Mechanical Design

height55.5 mm

height with lowest-profile installation55 mm

depth54.4 mm

length55 mm

fastening methodTH35 DIN rail

Net Weight30 g

material of the insulating bodyPA

Environmental conditions

minimum-60 °C

maximum105 °C
