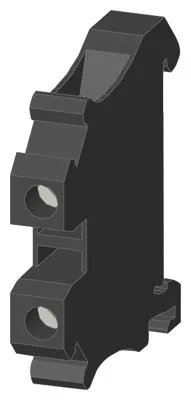

Siemens 8WH1000-0AH08

Terminal, screw terminal, through-type terminal, 6 mm², black

SiemensMFR # 8WH1000-0AH08SKU # CEY-8EF3B037D246

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

terminal contact spacing8 mm

operating voltage rated value1 000 V

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, screw terminal, through-type terminal, 6 mm², black

Siemens 8WH1000-0AH08

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productthrough-type terminal

product versionthrough-type terminal, for mounting on mounting rail acc. to IEC 60715

design of terminal terminal levels internally linkedNo

General technical data

terminal contact spacing8 mm

operating voltage rated value1 000 V

Protection class

combustibility class according to UL 94V0

Main circuit

operational current rated value41 A

Appearance

colorblack

Product details

product component required end cover plateYes

Number

number of terminal levels1

number of terminal points per terminal level2

Connections

minimum0.2 mm²

maximum10 mm²

minimum2.5 mm²

maximum0.2 mm²

with core end processing minimum0.25 mm²

with core end processing maximum6 mm²

without core end processing minimum0.2 mm²

without core end processing maximum10 mm²

minimum1.5 N·m

maximum2 N·m

type of connection 1screw-type terminal

type of connection 2screw-type terminal

position of the terminallateral

Mechanical Design

height48 mm

height with lowest-profile installation47.5 mm

depth46.9 mm

length48 mm

fastening methodTH35 DIN rail

Net Weight14 g

material of the insulating bodyPA

Environmental conditions

minimum-60 °C

maximum105 °C

Accessories 27

Genuine accessories that can be used with the Siemens 8WH1000-0AH08 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8WH9020-6DC10	Aksesuar
8WH8112-4AA05	Aksesuar
8WH9200-0AD00	Aksesuar
8WH9020-6DF10	Aksesuar
8WH8140-4XA05	Aksesuar
8WH8140-4AB25	Aksesuar
8WH8140-4AB15	Aksesuar
8WH8140-4AB05	Aksesuar
8WH8120-4XA05	Aksesuar
8WH8120-4AB85	Aksesuar
8WH8120-4AB75	Aksesuar
8WH8120-4AB65	Aksesuar
8WH9002-8AC10	Aksesuar
8WH8120-4AB55	Aksesuar
8WH8120-4AB35	Aksesuar
8WH8120-4AB25	Aksesuar
8WH8120-4AB15	Aksesuar
8WH8120-4AB05	Aksesuar
8WH8110-4AA05	Aksesuar
8WH9070-6BA00	Aksesuar
8WH9000-1PA00	Aksesuar
8WH8113-1AA05	Aksesuar
8WH9020-6DE10	Aksesuar
8WH9020-6DD10	Aksesuar
8WH9020-6DL10	Aksesuar
8WH8120-4AB45	Aksesuar
8WH9064-5BA06	Aksesuar
