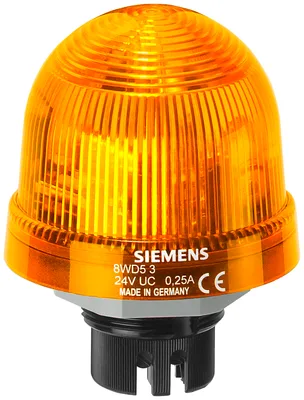

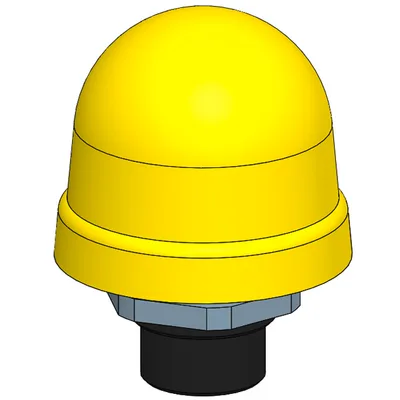

Siemens 8WD5320-5DD
Alternatively, integrated lamps with blinking or flashing light can be used rotating light, with integrated LED, yellow, 24 V AC/DC, Diameter 70 mm
product designationRotating light element
consumed current maximum40 mA
type of voltage of the operating voltageAC/DC
1 at DC rated value24 V
1 at AC at 50 Hz rated value24 V
1 at AC at 60 Hz rated value24 V
About This Product
Alternatively, integrated lamps with blinking or flashing light can be used rotating light, with integrated LED, yellow, 24 V AC/DC, Diameter 70 mm
Siemens 8WD5320-5DD
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General technical data
product designationRotating light element
consumed current maximum40 mA
type of voltage of the operating voltageAC/DC
1 at DC rated value24 V
1 at AC at 50 Hz rated value24 V
1 at AC at 60 Hz rated value24 V
relative positive tolerance of the operating voltage10 %
relative negative tolerance of the operating voltage-10 %
speed120 1/min
reference code according to IEC 81346-2P
fastening methodBayonet / flush mounting
materialPC; PC/ABS; PA
coloryellow
Mechanical data
product component light sourceYes
type of electrical connectionscrew terminal
outer diameter of the signal column element75 mm
Lamp
design of the optical signalrotating light
type of light sourceLED
light intensity3.3 cd
service life of LED100 000 h
Ambient conditions
ambient temperature during operation-20 ... +50 °C
protection class IPIP65
depth31 mm
height66 mm
width75 mm
