Siemens 8WD5320-0CE
Integrated signal lamp, single flash light, w. built-in electronic flash, clear, 24 V DC, diameter 70 mm
product designationFlashlight element
consumed current maximum30 mA
type of voltage of the operating voltageDC
1 at DC rated value24 V
reference code according to IEC 81346-2P
fastening methodBayonet / flush mounting
About This Product

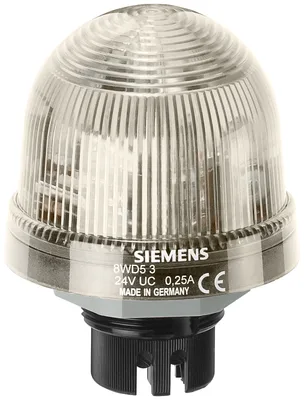

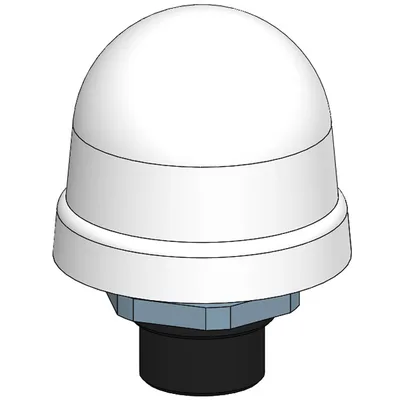

Integrated signal lamp, single flash light, w. built-in electronic flash, clear, 24 V DC, diameter 70 mm
Siemens 8WD5320-0CE
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General technical data
product designationFlashlight element
consumed current maximum30 mA
type of voltage of the operating voltageDC
1 at DC rated value24 V
relative positive tolerance of the operating voltage10 %
relative negative tolerance of the operating voltage-10 %
reference code according to IEC 81346-2P
fastening methodBayonet / flush mounting
materialPC; PC/ABS; PA
colorclear
Mechanical data
product component light sourceYes
type of electrical connectionscrew terminal
outer diameter of the signal column element75 mm
Lamp
design of the optical signalflash light
type of light sourceLED
light intensity50 535 cd
flash frequency1 Hz
service life of LED50 000 h
Ambient conditions
ambient temperature during operation-20 ... +50 °C
protection class IPIP65
depth31 mm
height66 mm
width75 mm
