How can I get a price quote for Siemens 8WD4613-5JH37?

You can request a fast quote for Siemens 8WD4613-5JH37 from Yılsa Engineering. Reference part number YLSAQKCSANSNN0D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WD4613-5JH37 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WD4613-5JH37 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WD4613-5JH37?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

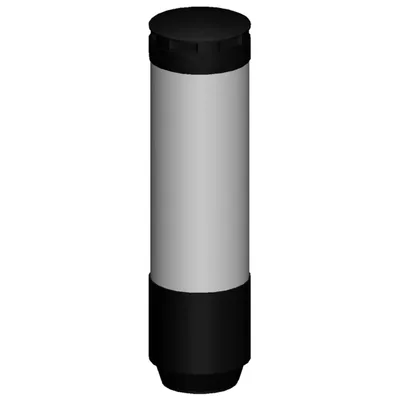

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 8WD4613-5JH37

electronically configurable signaling column, conventional, 9 segments, with acoustics, M12 plug, 8-pole

SiemensMFR # 8WD4613-5JH37SKU # YLSAQKCSANSNN0D

product brand nameSIRIUS

design of the productstandard signaling column

number of light segments9

type of parameterizationSoftware

type of voltage of the operating voltageDC

operating voltage at DC rated value24 V

Have questions?Chat on WhatsApp

About This Product

electronically configurable signaling column, conventional, 9 segments, with acoustics, M12 plug, 8-pole

Siemens 8WD4613-5JH37

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationElectronically configurable signaling column

design of the productstandard signaling column

General technical data

number of light segments9

product function adjustable optical signalYes

product function adjustable acoustic signalYes

type of interface for parameter assignmentUSB-C

type of parameterizationSoftware

type of voltage of the operating voltageDC

operating voltage at DC rated value24 V

relative positive tolerance of the operating voltage10 %

relative negative tolerance of the operating voltage10 %

insulation voltage (Ui) rated value50 V

impulse withstand voltage (Uimp) rated value330 V

operational current rated value405 mA

consumed current minimum65 mA

inrush current rated value800 mA

design of external power supply requiredSELV/PELV functional extra low voltage

overvoltage categoryI

degree of pollution3

reference code according to IEC 81346-2:2019P

operating resource protection class according to IEC 61140III

Safety related data

MTTFd39 a

Lamp

type of light sourceRGB-LED, multicolor

light intensity1.8 ... 7 cd

design of the signal stages preset 1Green/Continuous light/3 light segments

number of colors adjustable minimum1 000 000

flash frequency1 Hz

11 Hz

22 Hz

33 Hz

product component light sourceYes

service life of LED50 000 h

color of lensclear

design of the optical signalblink, flash, continuous, double flash, triple flash, pulsating

product function adjustable luminous intensityYes

number of signal stages preset3

1Green/Continuous light/3 light segments

2Yellow/Continuous light/3 light segments

3Red/Continuous light/3 light segments

11 Hz

22 Hz

33 Hz

Acoustic signal

type of acoustic signalmulti-tone

type of acoustic signal presetcontinuous tone

service life of acoustic signal device5 000 h

loudness level80 ... 105 dB

loudness level preset80 dB

number of sounds adjustable10

tone frequency preset2.7 kHz

tone frequency of alternating tone0.2 ... 6 kHz

Communication

protocol is supported IO-Link protocolNo

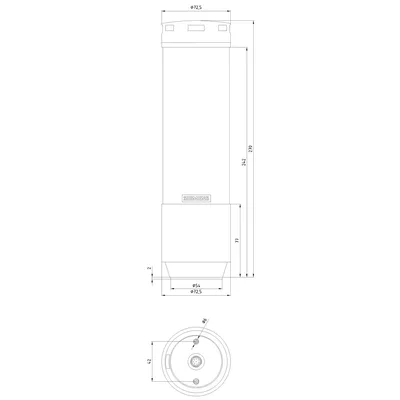

Enclosure

height271 mm

width72 mm

outer diameter72 mm

materialPC

color of the enclosureblack

fastening methodfloor mounting, pipe mounting, angle mounting

protection class IPIP66, IP69k

degree of protection NEMA rating4/4X/12/13

type of electrical connectionM12 plug, 8-pole

Ambient conditions

ambient temperature during operation-30 ... +60 °C

Environmental footprint

Environmental Product Declaration(EPD)Yes

Siemens eco profile (SEP)Siemens EcoTech

Accessories 20

Genuine accessories that can be used with the Siemens 8WD4613-5JH37 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8WD4208-0EF	Aksesuar
8WD4308-0DA	Aksesuar
8WD4308-0ED	Aksesuar
8WD4308-0EB	Aksesuar
8WD4308-0EA	Aksesuar
8WD4618-0CA	Aksesuar
8WD4408-0FA	Aksesuar
8WD4308-0DE	Aksesuar
8WD4308-0EE	Aksesuar
8WD4308-0DC	Aksesuar
8WD4208-0CA	Aksesuar
8WD4308-0DD	Aksesuar
8WD4308-0DB	Aksesuar
8WD4618-0DA	Aksesuar
3SX5601-3SV00-1AK3	Seçmeli zorunlu ürün
3SX5601-2GA05	Seçmeli zorunlu ürün
3SX5601-2GA03	Seçmeli zorunlu ürün
3SX5601-2GA10	Seçmeli zorunlu ürün
3SX5601-3SV18	Seçmeli zorunlu ürün
3SX5601-2GA15	Seçmeli zorunlu ürün
