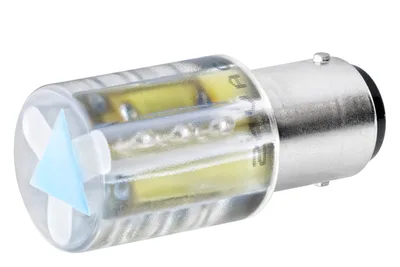

Siemens 8WD4458-6XC
LED, base BA15d, green, 230 V AC, accessory for signaling columns, with diameter 50 mm and 70 mm
product brand nameSIRIUS
product designationLED
type of voltage of the operating voltageAC
1 at AC at 50 Hz rated value230 V
1 at AC at 60 Hz rated value230 V
reference code according to EN 61346-2P
About This Product
LED, base BA15d, green, 230 V AC, accessory for signaling columns, with diameter 50 mm and 70 mm
Siemens 8WD4458-6XC
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIRIUS
product designationLED
General technical data
type of voltage of the operating voltageAC
1 at AC at 50 Hz rated value230 V
1 at AC at 60 Hz rated value230 V
relative positive tolerance of the operating voltage10 %
relative negative tolerance of the operating voltage-15 %
reference code according to EN 61346-2P
Lamp
type of light sourceLED
light intensity1.26 cd
design of the reflection bodyDrum lens
socket designBA 15d
Enclosure
height45 mm
width20 mm
outer diameter of the signal column element70 mm
colorgreen
Ambient conditions
ambient temperature during operation-20 ... +60 °C
Environmental footprint
Environmental Product Declaration(EPD)Yes
Siemens eco profile (SEP)Siemens EcoTech
Accessories 8
Genuine accessories that can be used with the Siemens 8WD4458-6XC motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| 8WD4208-0EF | Aksesuar | |
| 8WD4308-0DB | Aksesuar | |
| 8WD4308-0DD | Aksesuar | |
| 8WD4408-0CC | Aksesuar | |
| 8WD4408-0DF | Aksesuar | |
| 8WD4308-0CA | Aksesuar | |
| 8WD4308-0DA | Aksesuar | |
| 8WD4308-0DF | Aksesuar |
