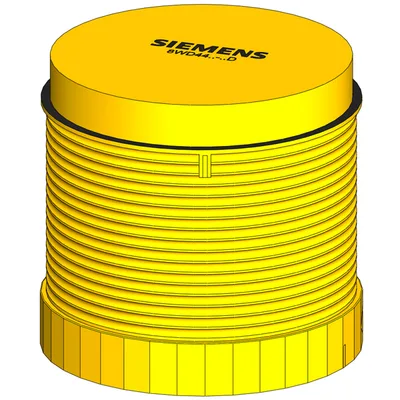

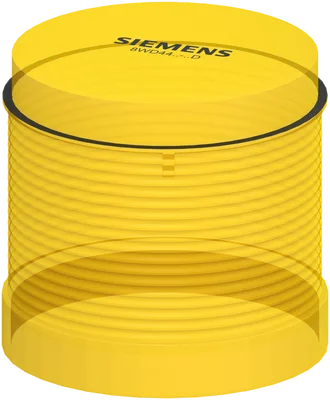

Siemens 8WD4450-5AD

Continuous light element, with integrated LED, yellow, 230 V AC, Diameter 70 mm

SiemensMFR # 8WD4450-5ADSKU # CEY-8EF3B03164BE

product brand nameSIRIUS

product designationContinuous light element

design of the productincluding light sources

type of voltage of the operating voltageAC

1 at AC at 50 Hz rated value230 V

1 at AC at 60 Hz rated value230 V

Have questions?Chat on WhatsApp

About This Product

Continuous light element, with integrated LED, yellow, 230 V AC, Diameter 70 mm

Siemens 8WD4450-5AD

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationContinuous light element

design of the productincluding light sources

General technical data

type of voltage of the operating voltageAC

1 at AC at 50 Hz rated value230 V

1 at AC at 60 Hz rated value230 V

relative positive tolerance of the operating voltage10 %

relative negative tolerance of the operating voltage-10 %

consumed current maximum35 mA

reference code according to EN 61346-2P

Lamp

type of light sourceLED

light intensity0.91 cd

light intensity0.62 ... 1.29 cd

design of the reflection bodyDrum lens

product component light sourceYes

service life of LED100 000 h

design of the optical signalcontinuous light

Enclosure

height65.5 mm

width70 mm

outer diameter of the signal column element70 mm

materialPC

coloryellow

fastening methodBayonet

protection class IPIP65

Ambient conditions

ambient temperature during operation-20 ... +50 °C

Environmental footprint

Environmental Product Declaration(EPD)Yes

Siemens eco profile (SEP)Siemens EcoTech
