How can I get a price quote for Siemens 8WD4440-5AC?

You can request a fast quote for Siemens 8WD4440-5AC from Yılsa Engineering. Reference part number CEY-8EF3B037DB7C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8WD4440-5AC in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8WD4440-5AC genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8WD4440-5AC?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

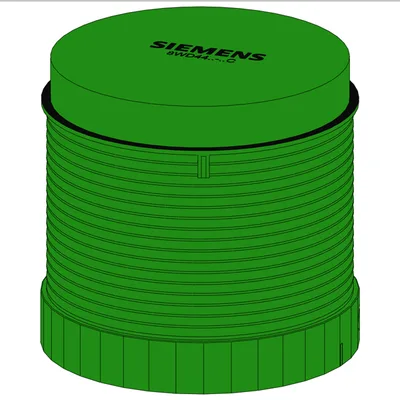

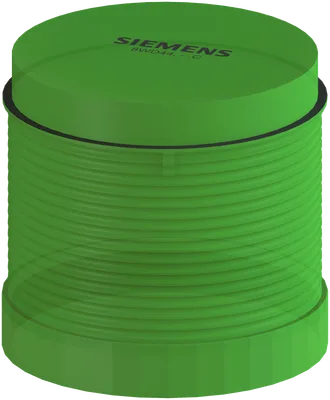

Siemens 8WD4440-5AC

Continuous light element, with integrated LED, green, 115 V AC, Diameter 70 mm

SiemensMFR # 8WD4440-5ACSKU # CEY-8EF3B037DB7C

product brand nameSIRIUS

product designationContinuous light element

design of the productincluding light sources

type of voltage of the operating voltageAC

1 at AC at 50 Hz rated value115 V

1 at AC at 60 Hz rated value115 V

Have questions?Chat on WhatsApp

About This Product

Continuous light element, with integrated LED, green, 115 V AC, Diameter 70 mm

Siemens 8WD4440-5AC

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationContinuous light element

design of the productincluding light sources

General technical data

type of voltage of the operating voltageAC

1 at AC at 50 Hz rated value115 V

1 at AC at 60 Hz rated value115 V

relative positive tolerance of the operating voltage10 %

relative negative tolerance of the operating voltage-10 %

consumed current maximum25 mA

reference code according to EN 61346-2P

Lamp

type of light sourceLED

light intensity0.7 cd

light intensity0.48 ... 1.07 cd

design of the reflection bodyDrum lens

product component light sourceYes

service life of LED100 000 h

design of the optical signalcontinuous light

Enclosure

height65.5 mm

width70 mm

outer diameter of the signal column element70 mm

materialPC

colorgreen

fastening methodBayonet

protection class IPIP65

Ambient conditions

ambient temperature during operation-20 ... +50 °C

Environmental footprint

Environmental Product Declaration(EPD)Yes

Siemens eco profile (SEP)Siemens EcoTech

Accessories 8

Genuine accessories that can be used with the Siemens 8WD4440-5AC motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8WD4208-0EF	Aksesuar
8WD4308-0DB	Aksesuar
8WD4308-0DD	Aksesuar
8WD4408-0CC	Aksesuar
8WD4408-0DF	Aksesuar
8WD4308-0CA	Aksesuar
8WD4308-0DA	Aksesuar
8WD4308-0DF	Aksesuar
