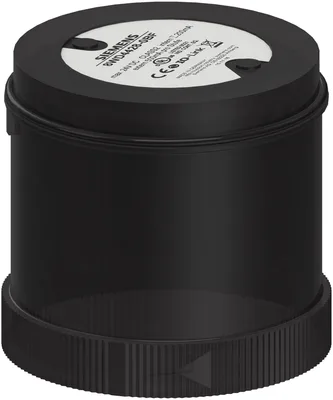

Siemens 8WD4428-0BF
IO-Link adapter element, black, for 5 signaling elements, 24 V DC, diameter 70 mm
product designationIO-Link adapter element
materialPC
colorblack
degree of pollution3
consumed current maximum6 mA
protection class IPIP65
About This Product
IO-Link adapter element, black, for 5 signaling elements, 24 V DC, diameter 70 mm
Siemens 8WD4428-0BF
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product designationIO-Link adapter element
General technical data
materialPC
colorblack
outer diameter of the signal column element70 mm
degree of pollution3
consumed current maximum6 mA
protection class IPIP65
reference code according to IEC 81346-2B
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameLead CAS-No. 7439-92-1
Net Weight0.081 kg
type of voltage of the operating voltageDC
operating voltage 1 at DC rated value24 V
relative positive tolerance of the operating voltage10 %
relative negative tolerance of the operating voltage-15 %
Communication/ Protocol
IO-Link protocolYes
IO-Link transfer rateCOM2 (38,4 kBaud)
point-to-point cycle time between master and IO-Link device minimum10 ms
type of voltage supply via input/output link masterYes
of the address range of the inputs with cyclical transfer total3 byte
of the address range of the outputs with cyclical transfer total1 byte
Inputs/ Outputs
number of digital inputs/outputs0
number of digital inputs0
safety-related0
Safety related data
MTTFd1 837 a
Ambient conditions
ambient temperature during operation-20 ... +50 °C

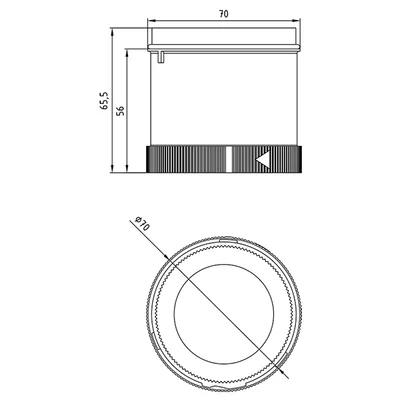

Installation/ mounting/ dimensions
fastening methodBayonet
height66 mm
