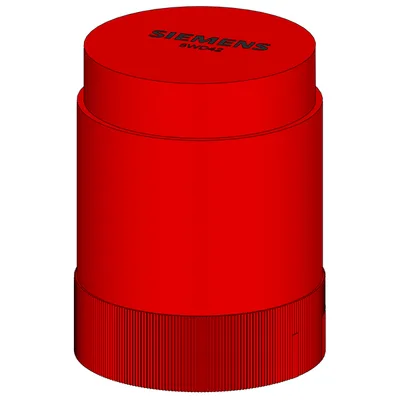

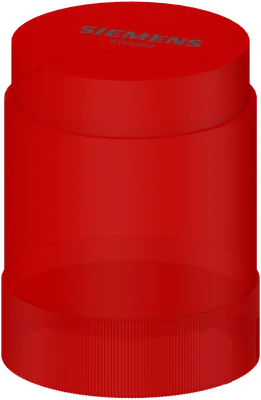

Siemens 8WD4250-5BB
Flashlight element, with integrated LED, red, 230 V AC, Diameter 50 mm
product brand nameSIRIUS
product designationRepeated-flash light element
design of the productincluding light sources
type of voltage of the operating voltageAC
1 at AC at 50 Hz rated value230 V
1 at AC at 60 Hz rated value230 V
About This Product
Flashlight element, with integrated LED, red, 230 V AC, Diameter 50 mm
Siemens 8WD4250-5BB
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIRIUS
product designationRepeated-flash light element
design of the productincluding light sources
General technical data
type of voltage of the operating voltageAC
1 at AC at 50 Hz rated value230 V
1 at AC at 60 Hz rated value230 V
relative positive tolerance of the operating voltage10 %
relative negative tolerance of the operating voltage-10 %
consumed current maximum35 mA
reference code according to EN 61346-2P
Lamp
type of light sourceLED
light intensity0.98 cd
light intensity0.64 ... 1.51 cd
design of the reflection bodyDrum lens
flashing frequency1 Hz
product component light sourceYes
service life of LED100 000 h
design of the optical signalblinklight
Enclosure

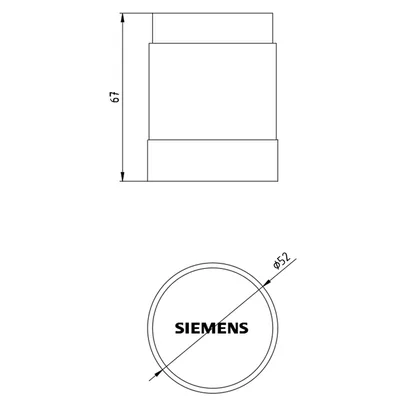

height67 mm
width52 mm
outer diameter of the signal column element50 mm
materialPC
colorred
fastening methodBayonet
protection class IPIP54
Ambient conditions
ambient temperature during operation-20 ... +50 °C
Environmental footprint
Environmental Product Declaration(EPD)Yes
Siemens eco profile (SEP)Siemens EcoTech
