How can I get a price quote for Siemens 8US1941-2AA01?

You can request a fast quote for Siemens 8US1941-2AA01 from Yılsa Engineering. Reference part number CEY-8EF3B03088C2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8US1941-2AA01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8US1941-2AA01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8US1941-2AA01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

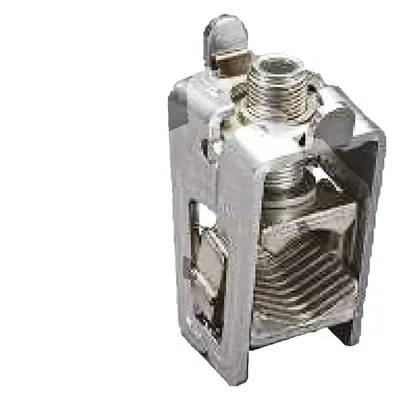

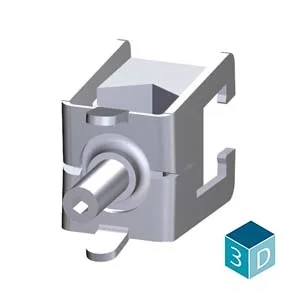

Siemens 8US1941-2AA01

Busbar system, accessories Connecting terminal 95...185mm2 Rail section 20, 25, 30 x 5, 10mm and for TT-profile

SiemensMFR # 8US1941-2AA01SKU # CEY-8EF3B03088C2

product brand nameSENTRON

product designationConnecting terminal

design of the productAccessories

operating voltage at AC rated value690 V

height51 mm

width38 mm

Have questions?Chat on WhatsApp

About This Product

Busbar system, accessories Connecting terminal 95...185mm2 Rail section 20, 25, 30 x 5, 10mm and for TT-profile

Siemens 8US1941-2AA01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationConnecting terminal

design of the productAccessories

Supply voltage

operating voltage at AC rated value690 V

suitability for usefor busbars 20, 25, 30 x 5, 10 mm and mounting rails

according UL

operational current according to UL 508 rated value310 A

Connections

installation or assembly noteSuitable for aluminum conductors. For use of aluminum conductors, follow the maintenance instructions.

type of connectable conductor cross-sections for AWG cablesAWG 3/0 - MCM 350

solidAl 95 - 185 mm² circular conductor, stranded and sector-shaped conductor, stranded

strandedAl 95 - 185 mm² circular conductor, stranded and sector-shaped conductor, stranded

type of connectable conductor cross-sections for copper conductor stranded95 to 185 mm² circular conductor, sector-shaped conductor, stranded

type of connectable conductor cross-sections of the laminated conductor railscircular conductor, sector-shaped conductor, stranded

Mechanical Design

height51 mm

width38 mm

depth70 mm

Net Weight297 g

Accessories 1

Genuine accessories that can be used with the Siemens 8US1941-2AA01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
