How can I get a price quote for Siemens 8US1921-2BC01?

You can request a fast quote for Siemens 8US1921-2BC01 from Yılsa Engineering. Reference part number CEY-8EF3B02FD562. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8US1921-2BC01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8US1921-2BC01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8US1921-2BC01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

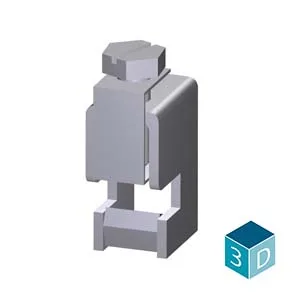

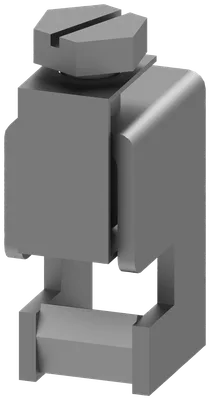

Siemens 8US1921-2BC01

busbar system, accessory busbar center-to-center spacing 40, 60 mm connection terminal busbar thickness: 10 mm+TT profile 16-120 mm2

SiemensMFR # 8US1921-2BC01SKU # CEY-8EF3B02FD562

product brand nameSENTRON

product designationConnecting terminal

design of the productAccessories

operating voltage at AC rated value690 V

power loss [W]0 W

solid minimum16 mm²

Have questions?Chat on WhatsApp

About This Product

busbar system, accessory busbar center-to-center spacing 40, 60 mm connection terminal busbar thickness: 10 mm+TT profile 16-120 mm2

Siemens 8US1921-2BC01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationConnecting terminal

design of the productAccessories

Supply voltage

operating voltage at AC rated value690 V

Dissipation

power loss [W]0 W

suitability for usefor busbars 12, 15, 20, 25, 30 x 10 mm and mounting rails

according UL

operational current according to UL 508 rated value255 A

Connections

finely stranded with wire end sleeve minimum16 mm²

finely stranded with wire end sleeve maximum120 mm²

solid minimum16 mm²

solid maximum120 mm²

type of connectable conductor cross-sections for AWG cablesWAG 4MCM 250

type of connectable conductor cross-sections for copper conductor stranded16-120 mm²

type of connectable conductor cross-sections of the laminated conductor railsCu lam. 2x9x0.8 mm or 6x15.5x0.8 mm or 10x15.5x0.5 mm

Mechanical Design

Net Weight104 g
