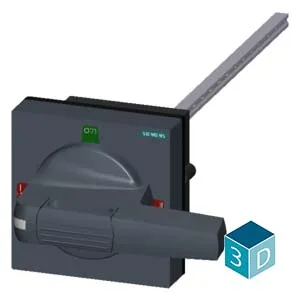

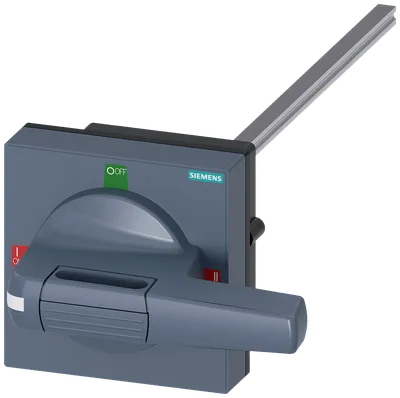

Siemens 8UD1141-2AE21

Door-coupling rotary operating mechanism standard with tolerance compensation Size 100x 100, Shaft 8x 8, 300 mm, I-0-II, Complete unit Handle size 100 mm Accessory for 3KC0 size 3

SiemensMFR # 8UD1141-2AE21SKU # CEY-8EF3B037D553

product brand nameSENTRON

product designationDoor mounted rotary operator

design of the productstandard with tolerance compensation

design of handleGray

design of the door lock systemDoor interlocking

length of handle100 mm

Have questions?Chat on WhatsApp

About This Product

Door-coupling rotary operating mechanism standard with tolerance compensation Size 100x 100, Shaft 8x 8, 300 mm, I-0-II, Complete unit Handle size 100 mm Accessory for 3KC0 size 3

Siemens 8UD1141-2AE21

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationDoor mounted rotary operator

design of the productstandard with tolerance compensation

design of handleGray

design of the door lock systemDoor interlocking

size of cross-section of the shaft of door-coupling rotary operating mechanism8x8 mm

size format of the masking frame of door-coupling rotary operating mechanism100x 100 mm

length of handle100 mm

length of shaft of door-coupling rotary operating mechanism300 mm

protection class IPIP65

suitability for use3KC0 MTSE, 3KD size 1 and 2, 3KF size 1

Product details

product descriptionsize 100x100 mm, shaft 8 x8 mm

product feature interlockYes

extension shaftYes

handle for emergency-OFF functionNo

product feature lockableYes

Accessories

accessoriesDoor-coupling rotary operating mechanism

display version for switch position indicatorI-0-II

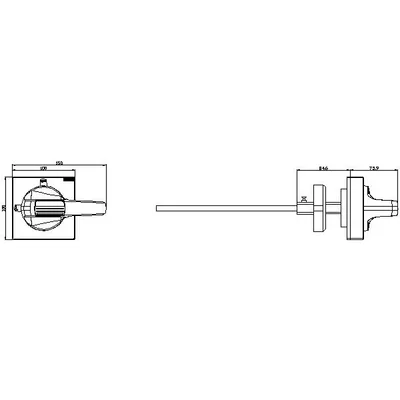

Mechanical Design

height144 mm

width98 mm

depth450 mm

Net Weight1.08 kg

Accessories 15

Genuine accessories that can be used with the Siemens 8UD1141-2AE21 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8UD1900-2GA00	Aksesuar
8UD1900-2HA00	Aksesuar
8UD1900-6GA00	Aksesuar
8UD1900-6HA00	Aksesuar
8UC6022	Bileşen
8UC6032	Bileşen · main and EMERGENCY OFF switch
8UC6082	Bileşen · main and EMERGENCY OFF switch
3KC0336-0PE00-0AA0	Uyumlu ürün
3KC0338-0PE00-0AA0	Uyumlu ürün
3KC0340-0PE00-0AA0	Uyumlu ürün
3KC0342-0PE00-0AA0	Uyumlu ürün
3KC0436-0PE00-0AA0	Uyumlu ürün
3KC0438-0PE00-0AA0	Uyumlu ürün
3KC0440-0PE00-0AA0	Uyumlu ürün
3KC0442-0PE00-0AA0	Uyumlu ürün
