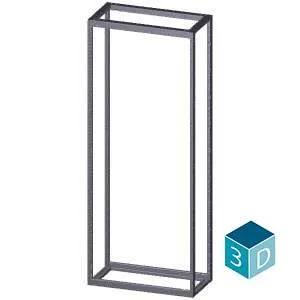

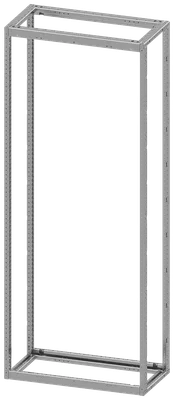

Siemens 8PQ1208-4BA01

Frame W: 800 mm D: 400 mm

SiemensMFR # 8PQ1208-4BA01SKU # CEY-8EF3B037F7BD

product brand nameSIVACON S4

product designationframe

design of the productstandard version

design of the surfacezinc plated

design of the product EMC versionNo

protection class IPIP00

Have questions?Chat on WhatsApp

About This Product

Siemens 8PQ1208-4BA01 (Frame W: 800 mm D: 400 mm) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 8PQ1208-4BA01 — price, stock availability and technical specifications.

Siemens 8PQ1208-4BA01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSIVACON S4

product designationframe

design of the productstandard version

design of the surfacezinc plated

design of the product EMC versionNo

Protection class

protection class IPIP00

operating resource protection class1

operational current rated value3 200 A

Suitability

suitability for installation for metric dimensionsYes

suitability for integration surface-mounted installationNo

suitability for integration flush mountingNo

suitability for use for outside useNo

Appearance

RAL color number7 035

RAL color number (similar)7 035

colorlight grey

Product details

ventilation doorNo

mounting plateNo

rear doorNo

viewing doorNo

height-adjustable mounting plateNo

product feature of the enclosure housing can be lined upYes

Number

number of locking devices0

number of doors0

Mechanical Design

height2 000 mm

width800 mm

depth400 mm

19-inch installationNo

floor mountingYes

wall mountingNo

material thickness of the plate2.5 mm

Net Weight31 kg

materialzinc-coated sheet steel
