How can I get a price quote for Siemens 8MR2151-2B?

You can request a fast quote for Siemens 8MR2151-2B from Yılsa Engineering. Reference part number CEY-8EF3B037F1FF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8MR2151-2B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8MR2151-2B genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8MR2151-2B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

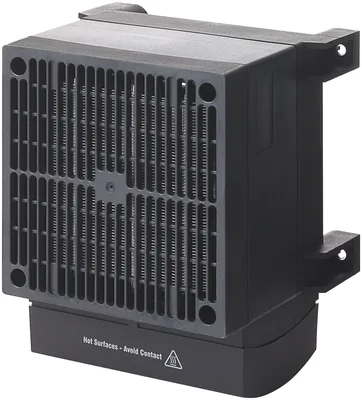

Siemens 8MR2151-2B

PTC without thermostat floor mounting fan heater CS030 120 V AC, 1200 W

SiemensMFR # 8MR2151-2BSKU # CEY-8EF3B037F1FF

product brand nameSIVACON

product designationheater unit

design of the productSemiconductor, without thermostat

consumed active power rated value1 200 W

volume flow rate free-blowing160 m³/h

type of voltage of the operating voltageAC

Have questions?Chat on WhatsApp

About This Product

PTC without thermostat floor mounting fan heater CS030 120 V AC, 1200 W

Siemens 8MR2151-2B

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSIVACON

product designationheater unit

design of the productSemiconductor, without thermostat

General technical data

consumed active power rated value1 200 W

volume flow rate free-blowing160 m³/h

Voltage

type of voltage of the operating voltageAC

continuous heating power at 20 °C1 200 W

inrush current typical16 A

at AC at 50 Hz rated value minimum120 V

at AC at 50 Hz rated value maximum120 V

at AC at 60 Hz rated value minimum120 V

at AC at 60 Hz rated value maximum120 V

Protection class

protection class IPIP20

Main circuit

operational current of the slow-blow fuse link10 A

Product details

blowerYes

thermostatNo

Connections

tightening torque with screw-type terminals maximum0.8 N·m

type of connection technology2-pole max. 2.5 mm2 with strain relief

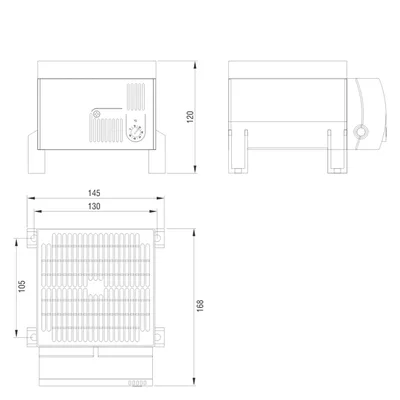

Mechanical Design

height168 mm

width145 mm

depth120 mm

fastening methodClip fixing for 35 mm for DIN rail or screw fixing (M6)

mounting positionair flow direction vertical (air exits on top/connection at bottom)

Net Weight1.284 kg

material of the enclosureplastic

Environmental conditions

relative humidity reference value90 %
