How can I get a price quote for Siemens 8MR2132-0A?

You can request a fast quote for Siemens 8MR2132-0A from Yılsa Engineering. Reference part number CEY-8EF3B037F128. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8MR2132-0A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8MR2132-0A genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8MR2132-0A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

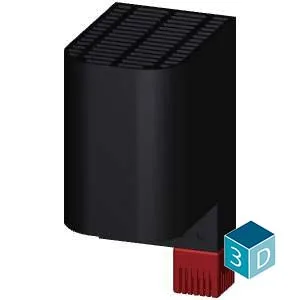

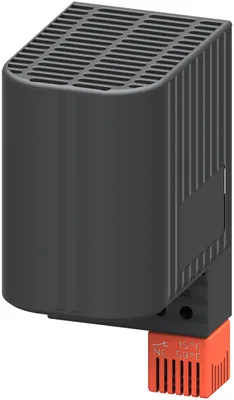

Siemens 8MR2132-0A

120-240V, 100WATTS, 15DEGR. CSF060, 06011.0-00,

SiemensMFR # 8MR2132-0ASKU # CEY-8EF3B037F128

product brand nameSIVACON

product designationheater unit

design of the productSemiconductor

consumed active power rated value100 W

switch-off temperature15 °C

minimum-40 °C

Have questions?Chat on WhatsApp

About This Product

Siemens 8MR2132-0A (120-240V, 100WATTS, 15DEGR. CSF060, 06011.0-00,) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 8MR2132-0A — price, stock availability and technical specifications.

Siemens 8MR2132-0A

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSIVACON

product designationheater unit

design of the productSemiconductor

General technical data

consumed active power rated value100 W

switch-off temperature15 °C

minimum-40 °C

maximum70 °C

Voltage

type of voltage of the operating voltageAC

continuous heating power at 20 °C100 W

inrush current typical4.5 A

rated value minimum120 V

rated value maximum240 V

at AC at 50 Hz rated value minimum120 V

at AC at 50 Hz rated value maximum240 V

at AC at 60 Hz rated value minimum120 V

at AC at 60 Hz rated value maximum240 V

Protection class

protection class IPIP20

Main circuit

operational current of the slow-blow fuse link8 A

Product details

blowerNo

thermostatYes

Connections

tightening torque with screw-type terminals maximum0.8 N·m

type of connection technology2-pole terminal 2.5 mm2

Mechanical Design

height110 mm

width60 mm

depth90 mm

fastening methodClip for 35 mm DIN rail

mounting positionair flow direction vertical (air exits on top/connection at bottom)

Net Weight361 g

material of the enclosureplastic

Environmental conditions

relative humidity reference value90 %

minimum-45 °C

maximum70 °C
