How can I get a price quote for Siemens 8MF1088-3BR4?

You can request a fast quote for Siemens 8MF1088-3BR4 from Yılsa Engineering. Reference part number CEY-8EF3B038067F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8MF1088-3BR4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8MF1088-3BR4 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8MF1088-3BR4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

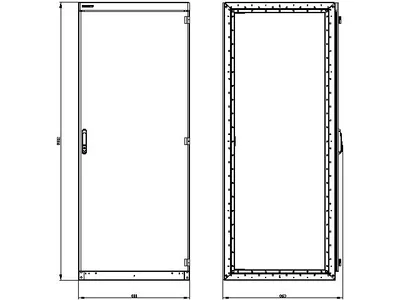

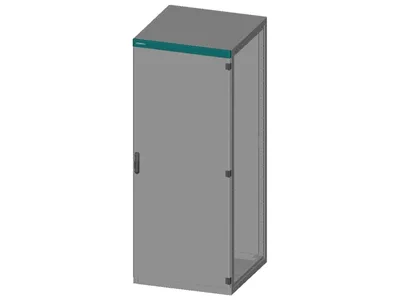

Siemens 8MF1088-3BR4

SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, IP40, H: 2000 mm, W: 800 mm, T: 800 mm

SiemensMFR # 8MF1088-3BR4SKU # CEY-8EF3B038067F

product brand nameSIVACON

product designationEmpty control cabinet enclosure

design of the productaccording to IEC 62208

design of the surfacepowder-coated

design of the product EMC versionNo

protection class IPIP40

Have questions?Chat on WhatsApp

About This Product

SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, IP40, H: 2000 mm, W: 800 mm, T: 800 mm

Siemens 8MF1088-3BR4

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSIVACON

product designationEmpty control cabinet enclosure

design of the productaccording to IEC 62208

design of the surfacepowder-coated

design of the product EMC versionNo

Protection class

protection class IPIP40

operating resource protection class1

Suitability

suitability for installation for metric dimensionsYes

suitability for integration surface-mounted installationYes

suitability for integration flush mountingNo

suitability for use for outside useNo

Appearance

RAL color number7 035

RAL color number (similar)7 035

colorlight grey

Product details

ventilation doorNo

mounting plateYes

rear doorNo

viewing doorNo

height-adjustable mounting plateYes

product feature of the enclosure housing can be lined upYes

Number

number of locking devices0

number of doors1

Mechanical Design

height2 000 mm

width800 mm

depth800 mm

19-inch installationNo

floor mountingYes

wall mountingNo

ventilation cross section inlet can be used0 cm²

ventilation cross section outlet can be used0 cm²

Net Weight137.89 kg

materialsteel
