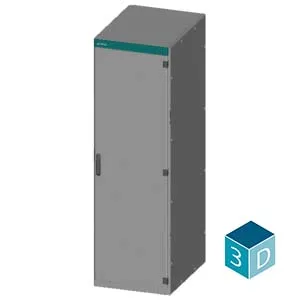

Siemens 8MF1068-3BS5

SIVACON, Control panel Empty enclosure, according to IEC 62208, IP55, H: 2000 mm, W: 600 mm, T: 800 mm

SiemensMFR # 8MF1068-3BS5SKU # CEY-8EF3B038001F

product brand nameSIVACON

product designationEmpty control cabinet enclosure

design of the productaccording to IEC 62208

design of the surfacepowder-coated

design of the product EMC versionNo

protection class IPIP55

Have questions?Chat on WhatsApp

About This Product

SIVACON, Control panel Empty enclosure, according to IEC 62208, IP55, H: 2000 mm, W: 600 mm, T: 800 mm

Siemens 8MF1068-3BS5

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSIVACON

product designationEmpty control cabinet enclosure

design of the productaccording to IEC 62208

design of the surfacepowder-coated

design of the product EMC versionNo

Protection class

protection class IPIP55

operating resource protection class1

Suitability

suitability for installation for metric dimensionsYes

suitability for integration surface-mounted installationYes

suitability for integration flush mountingNo

suitability for use for outside useNo

Appearance

RAL color number7 035

RAL color number (similar)7 035

colorlight grey

Product details

ventilation doorNo

mounting plateYes

rear doorNo

viewing doorNo

height-adjustable mounting plateYes

product feature of the enclosure housing can be lined upNo

Number

number of locking devices0

number of doors1

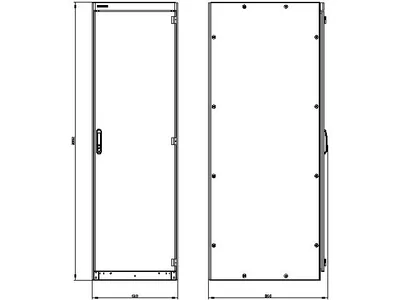

Mechanical Design

height2 000 mm

width600 mm

depth800 mm

19-inch installationNo

floor mountingYes

wall mountingNo

ventilation cross section inlet can be used0 cm²

ventilation cross section outlet can be used0 cm²

Net Weight153.27 kg

materialsteel
