How can I get a price quote for Siemens 8LK1208-4AA01?

You can request a fast quote for Siemens 8LK1208-4AA01 from Yılsa Engineering. Reference part number YLS4VTKBSW4YB0F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8LK1208-4AA01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8LK1208-4AA01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8LK1208-4AA01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

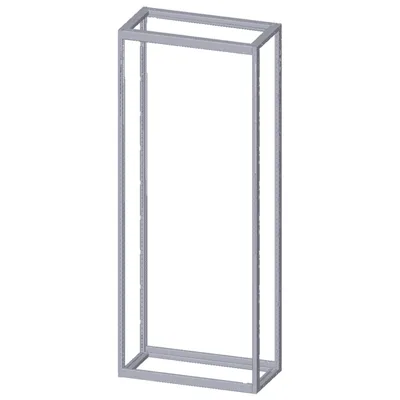

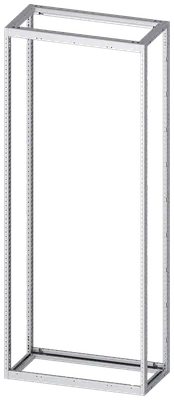

Siemens 8LK1208-4AA01

Frame D: 400 mm W: 800 mm

SiemensMFR # 8LK1208-4AA01SKU # YLS4VTKBSW4YB0F

product brand nameALPHA 3200 Eco

product designationframe

design of the surfacezinc plated

design of the product EMC versionNo

protection class IPIP00

operating resource protection class1

Have questions?Chat on WhatsApp

About This Product

Siemens 8LK1208-4AA01 (Frame D: 400 mm W: 800 mm) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 8LK1208-4AA01 — price, stock availability and technical specifications.

Siemens 8LK1208-4AA01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameALPHA 3200 Eco

product designationframe

design of the surfacezinc plated

design of the product EMC versionNo

Protection class

protection class IPIP00

operating resource protection class1

operational current rated value3 200 A

Suitability

suitability for installation for metric dimensionsYes

suitability for integration surface-mounted installationNo

suitability for integration flush mountingNo

suitability for use for outside useNo

Appearance

RAL color number7 035

RAL color number (similar)7 035

colorlight grey

Product details

ventilation doorNo

mounting plateNo

rear doorNo

viewing doorNo

height-adjustable mounting plateNo

product feature of the enclosure housing can be lined upYes

Number

number of locking devices0

number of doors0

Mechanical Design

height2 000 mm

width800 mm

depth400 mm

19-inch installationNo

floor mountingYes

wall mountingNo

material thickness of the plate2.5 mm

Net Weight34.385 kg

materialsteel

Accessories 4

Genuine accessories that can be used with the Siemens 8LK1208-4AA01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
