How can I get a price quote for Siemens 8GK1483-8KP15?

You can request a fast quote for Siemens 8GK1483-8KP15 from Yılsa Engineering. Reference part number YLS7UUTHGTAQJK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8GK1483-8KP15 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8GK1483-8KP15 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8GK1483-8KP15?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

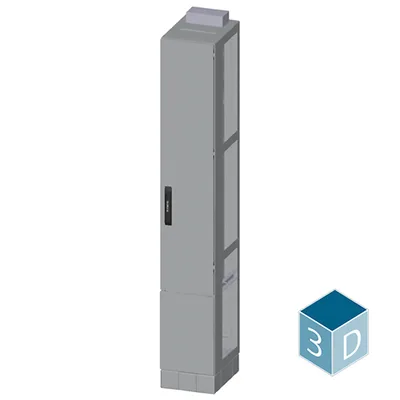

Siemens 8GK1483-8KP15

ALPHA DIN transformer cabinet, H=1950mm W=300mm D=400mm, incl. 100 mm plinth sheet-steel door, open side panels, SK1, IP30

SiemensMFR # 8GK1483-8KP15SKU # YLS7UUTHGTAQJK

product brand nameALPHA

design of the productSurface mounting

surface processingpowder-coated

protection class IPIP30

operating resource protection classSafety class 1

IK protection classIK09

Have questions?Chat on WhatsApp

About This Product

ALPHA DIN transformer cabinet, H=1950mm W=300mm D=400mm, incl. 100 mm plinth sheet-steel door, open side panels, SK1, IP30

Siemens 8GK1483-8KP15

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameALPHA

product designationFloor-mounted cabinet for isolating transformers

design of the productSurface mounting

surface processingpowder-coated

Protection class

protection class IPIP30

operating resource protection classSafety class 1

IK protection classIK09

suitability for interaction lightning protectionNo

suitability for use for outside useNo

Appearance

RAL color number7 035

cable entryYes

mounting plateNo

product extension optional side-by-side mountingYes

number of rows9

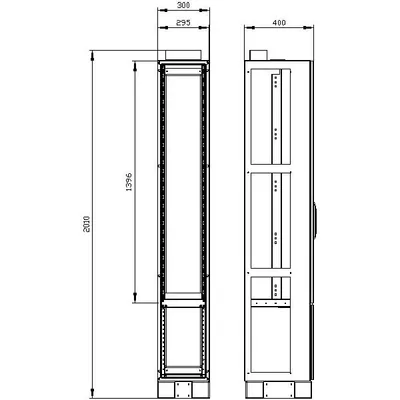

Mechanical Design

height1 950 mm

width300 mm

depth400 mm

installation depth400 mm

number of modular width units108

number of modular width units per DIN mounting bar12

fastening methodfloor mounting

Net Weight44 kg

material of the enclosureSteel

Accessories 18

Genuine accessories that can be used with the Siemens 8GK1483-8KP15 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8HP1805	Aksesuar
8GK9920-0KK33	Aksesuar
8GK9910-0KK36	Aksesuar
8GK9910-0KK01	Aksesuar
8GF9661	Aksesuar
8GD9084	Aksesuar
8GK9910-0KK00	Aksesuar
8GK9120-0KK30	Aksesuar
8GD9286	Aksesuar
8MF1000-2VU	Aksesuar
8MF1000-2VK	Aksesuar
8GK9918-0KK00	Aksesuar
8GK9910-1KK24	Aksesuar
8GK9910-0KK23	Aksesuar
8GK9910-0KK22	Aksesuar
8GK9711-0KK03	Aksesuar
8GD9132	Aksesuar
8GK9520-0KK05	Zorunlu ek ürün
