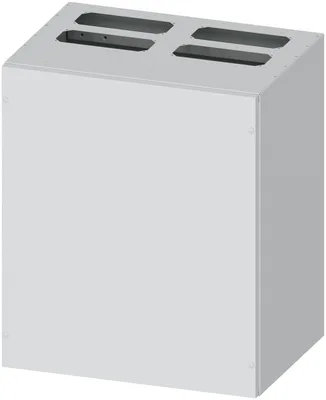

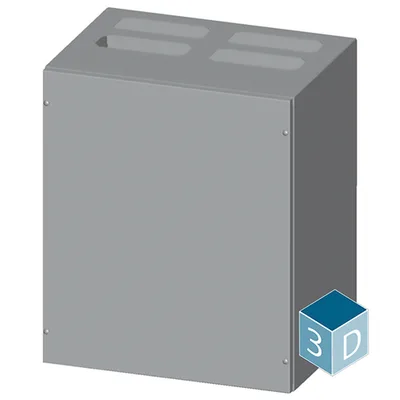

Siemens 8GK1383-2KK25
marshalling box safety class 1, IP55 h=650, w=550, d=400 screwed front plate without stays
product brand nameALPHA
product designationMarshalling box
design of the productfor 400 mm depth
design of the cap/top coverclosed
surface processingpowder-coated
protection class IPIP55
About This Product
marshalling box safety class 1, IP55 h=650, w=550, d=400 screwed front plate without stays
Siemens 8GK1383-2KK25
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product brand nameALPHA
product designationMarshalling box
design of the productfor 400 mm depth
design of the cap/top coverclosed
surface processingpowder-coated
Protection class
protection class IPIP55
operating resource protection classSafety class 1
IK protection classIK09
suitability for interaction lightning protectionNo
suitability for use for outside useNo
Appearance
RAL color number7 035
cable entryNo
mounting plateNo
product extension optional side-by-side mountingYes
Mechanical Design

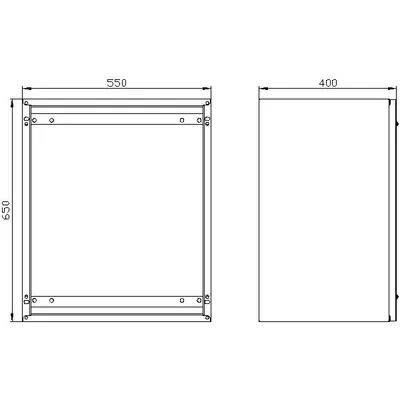

height650 mm
width550 mm
depth400 mm
installation depth400 mm
fastening methodsurface mounting
Net Weight16.7 kg
material of the enclosureSteel
Accessories 25
Genuine accessories that can be used with the Siemens 8GK1383-2KK25 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| 8HP1805 | Aksesuar | |
| 8GK4751-4KK23 | Aksesuar | |
| 8GK4751-4KK13 | Aksesuar | |
| 8GK4652-3KK12 | Aksesuar | |
| 8GK4651-3KK22 | Aksesuar | |
| 8GK4651-3KK12 | Aksesuar | |
| 8GK4650-3KK22 | Aksesuar | |
| 8GK4650-3KK12 | Aksesuar | |
| 8GK4650-2KK22 | Aksesuar | |
| 8GK4650-2KK12 | Aksesuar | |
| 8GK4551-3KK22 | Aksesuar | |
| 8GK4751-4KK10 | Aksesuar | |
| 8GK4551-3KK12 | Aksesuar | |
| 8GK4550-3KK12 | Aksesuar | |
| 8GK4550-2KK22 | Aksesuar | |
| 8GK4550-2KK12 | Aksesuar | |
| 8GK9911-1KK01 | Aksesuar | |
| 8GK9911-1KK00 | Aksesuar | |
| 8GK4854-0KK20 | Aksesuar | |
| 8GK4854-0KK10 | Aksesuar | |
| 8GK9561-0KK01 | Aksesuar | |
| 8GK9918-0KK00 | Aksesuar | |
| 8GK9711-0KK03 | Aksesuar | |
| 8GK4550-3KK22 | Aksesuar | |
| 8GK4751-4KK20 | Aksesuar |
