Siemens 8GK1122-4KA22

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

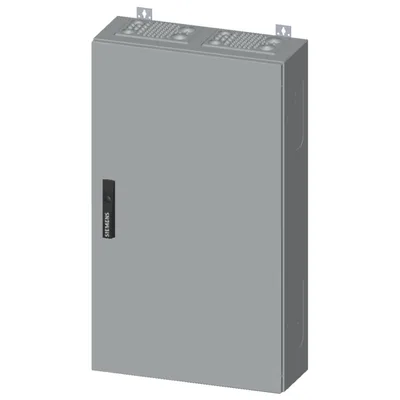

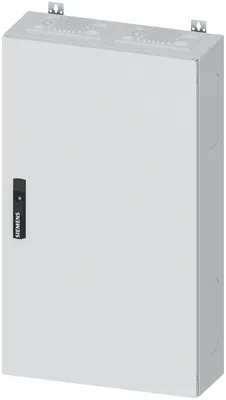

Siemens 8GK1122-4KA22

ALPHA 400, wall-mounted cabinet, IP44, Protection class 1, H: 950 mm, W: 550 mm, T: 210 mm, RAL 9016

SiemensMFR # 8GK1122-4KA22SKU # CEY-8EF3B02C330C

product brand nameALPHA

product designationWall-mounted cabinet

design of the productSurface mounting

surface processingpowder-coated

protection class IPIP44

operating resource protection classSafety class 1

Share

Have questions?Chat on WhatsApp

About This Product

ALPHA 400, wall-mounted cabinet, IP44, Protection class 1, H: 950 mm, W: 550 mm, T: 210 mm, RAL 9016

Siemens 8GK1122-4KA22

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameALPHA

product designationWall-mounted cabinet

design of the productSurface mounting

surface processingpowder-coated

Protection class

protection class IPIP44

operating resource protection classSafety class 1

IK protection classIK09

suitability for interaction lightning protectionYes

suitability for use for outside useNo

Appearance

RAL color number9 016

cable entryYes

mounting plateNo

product extension optional side-by-side mountingYes

number of rows12

Mechanical Design

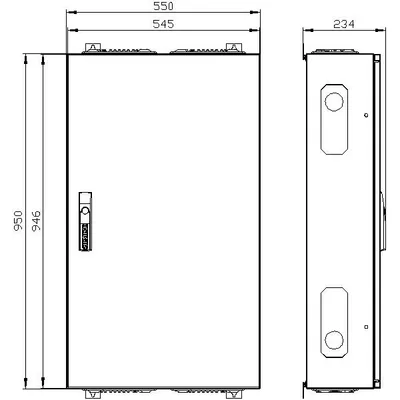

height950 mm

width550 mm

depth210 mm

installation depth210 mm

number of modular width units144

number of modular width units per DIN mounting bar12

fastening methodsurface mounting

Net Weight17 kg

material of the enclosureSteel

Accessories 45

Genuine accessories that can be used with the Siemens 8GK1122-4KA22 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8HP1805	Aksesuar
8GK4854-0KK10	Aksesuar
8GK4854-0KK20	Aksesuar
8GK9911-1KK00	Aksesuar
8GK9911-1KK01	Aksesuar
8GK4550-2KK12	Aksesuar
8GK4550-2KK22	Aksesuar
8GK4550-3KK12	Aksesuar
8GK4550-3KK22	Aksesuar
8GK4551-3KK12	Aksesuar
8GK4551-3KK22	Aksesuar
8GK4650-2KK12	Aksesuar
8GK4650-2KK22	Aksesuar
8GK4650-3KK12	Aksesuar
8GK4650-3KK22	Aksesuar
8GK4651-3KK12	Aksesuar
8GK4651-3KK22	Aksesuar
8GK4652-3KK12	Aksesuar
8GD9084	Aksesuar
8GF9661	Aksesuar
8GK9561-0KK01	Aksesuar
8GD9286	Aksesuar
8GK9561-0KK04	Aksesuar
8MF1000-2VU	Aksesuar
8GK9910-0KK00	Aksesuar
8GD9132	Aksesuar
8GK9560-0KK04	Aksesuar
8GK9560-0KK06	Aksesuar
8GK9560-0KK13	Aksesuar
8GK9910-0KK02	Aksesuar
8GK9101-4KK01	Aksesuar
8GK9101-5KK01	Aksesuar
8GK9101-6KK01	Aksesuar
8GK9910-0KK36	Aksesuar
8GK9103-0KK10	Aksesuar
8GK9120-0KK30	Aksesuar
8GK9711-0KK03	Aksesuar
8GK9910-0KK01	Aksesuar
8GK9910-0KK22	Aksesuar
8GK9910-0KK23	Aksesuar
8GK9910-1KK24	Aksesuar
8GK9918-0KK00	Aksesuar
8MF1000-2VK	Aksesuar
8GK9103-0KK20	Aksesuar
8GK9920-0KK33	Aksesuar
