Siemens 8GK1102-6KK22

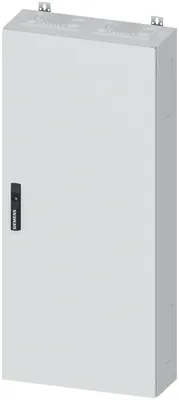

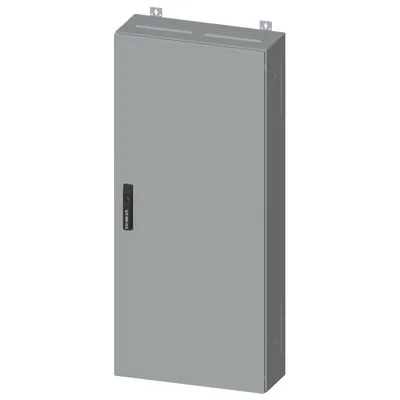

ALPHA 400, wall-mounted cabinet, Flat Pack, IP43, Protection class 1, H: 1250 mm, W: 550 mm, T: 210 mm, RAL 9016
product brand nameALPHA
product designationWall-mounted cabinet
design of the productsurface-mounted (flat pack)
surface processingpowder-coated
protection class IPIP43
operating resource protection classSafety class 1
About This Product
ALPHA 400, wall-mounted cabinet, Flat Pack, IP43, Protection class 1, H: 1250 mm, W: 550 mm, T: 210 mm, RAL 9016
Siemens 8GK1102-6KK22
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product brand nameALPHA
product designationWall-mounted cabinet
design of the productsurface-mounted (flat pack)
surface processingpowder-coated
Protection class
protection class IPIP43
operating resource protection classSafety class 1
IK protection classIK09
suitability for interaction lightning protectionYes
suitability for use for outside useNo
Appearance
RAL color number9 016
cable entryYes
mounting plateNo
product extension optional side-by-side mountingYes
number of rows16

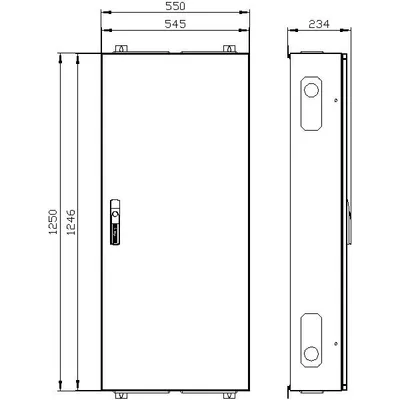

Mechanical Design
height1 250 mm
width550 mm
depth210 mm
installation depth210 mm
number of modular width units192
number of modular width units per DIN mounting bar12
fastening methodsurface mounting
Net Weight23 kg
material of the enclosureSteel
Accessories 48
Genuine accessories that can be used with the Siemens 8GK1102-6KK22 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
