Siemens 8GK1072-2KK21

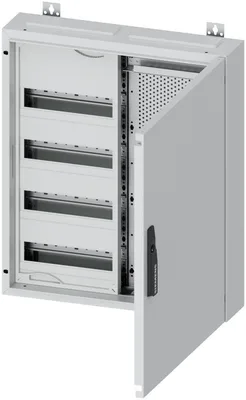

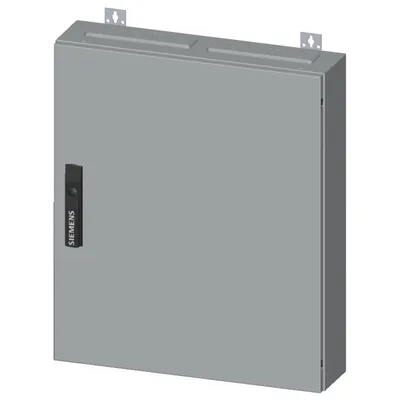

ALPHA 160 DIN wall mounted board with mounting plate for Multimedia-devices RAL 9016, IP31, SK2, h=650 w=550 d=140

SiemensMFR # 8GK1072-2KK21SKU # YLS7BHLB2SZICZK

product brand nameALPHA

product designationWall-mounted cabinet

design of the productsurface-mounted for built-in devices

surface processingpowder-coated

protection class IPIP44

operating resource protection classSafety class 2

Have questions?Chat on WhatsApp

About This Product

ALPHA 160 DIN wall mounted board with mounting plate for Multimedia-devices RAL 9016, IP31, SK2, h=650 w=550 d=140

Siemens 8GK1072-2KK21

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameALPHA

product designationWall-mounted cabinet

design of the productsurface-mounted for built-in devices

surface processingpowder-coated

Protection class

protection class IPIP44

operating resource protection classSafety class 2

IK protection classIK08

suitability for interaction lightning protectionNo

suitability for use for outside useNo

Appearance

RAL color number9 016

cable entryYes

mounting plateNo

special product featuresurface mounting

product extension optional side-by-side mountingYes

number of DIN mounting bars8

number of rows8

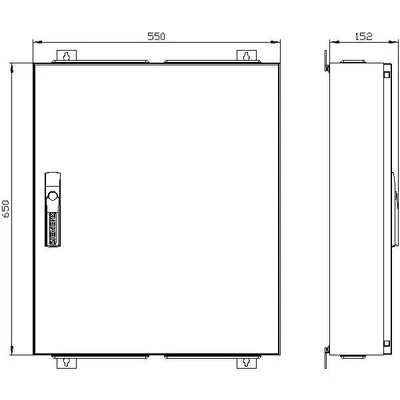

Mechanical Design

height650 mm

width550 mm

depth140 mm

installation depth140 mm

number of modular width units96

number of modular width units per DIN mounting bar12

fastening methodsurface mounting

Net Weight13.76 kg

material of the enclosureSteel

Accessories 29

Genuine accessories that can be used with the Siemens 8GK1072-2KK21 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8GK9910-0KK00	Aksesuar
8GK9910-0KK36	Aksesuar
8GK9910-0KK01	Aksesuar
8GK9120-0KK30	Aksesuar
8GF9661	Aksesuar
8GD9084	Aksesuar
8GK9561-0KK01	Aksesuar
8GK9001-3KK01	Aksesuar
8HP1805	Aksesuar
8GK9711-0KK03	Aksesuar
8GD9286	Aksesuar
8MF1000-2VU	Aksesuar
8MF1000-2VK	Aksesuar
8GK9918-0KK00	Aksesuar
8GK9910-1KK24	Aksesuar
8GK9910-0KK23	Aksesuar
8GK9910-0KK22	Aksesuar
8GK9001-4KK01	Aksesuar
8GS4034-4	Aksesuar
8GS4034-3	Aksesuar
8GS4034-1	Aksesuar
8GS4030-2	Aksesuar
8GK9560-0KK13	Aksesuar
8GK9560-0KK06	Aksesuar
8GK9560-0KK04	Aksesuar
8GK9002-0KK10	Aksesuar
8GD9132	Aksesuar
8GK9920-0KK33	Aksesuar
8GK4851-4KK00	Seçmeli zorunlu ürün
