How can I get a price quote for Siemens 8GK1061-4KK30?

You can request a fast quote for Siemens 8GK1061-4KK30 from Yılsa Engineering. Reference part number YLSWIMT848JVMBT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 8GK1061-4KK30 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 8GK1061-4KK30 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 8GK1061-4KK30?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

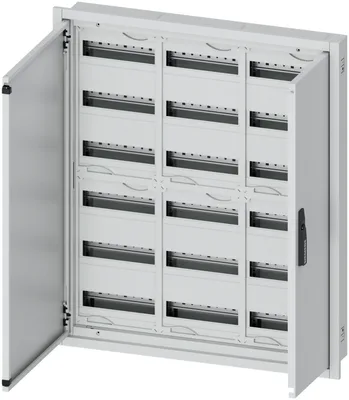

Siemens 8GK1061-4KK30

ALPHA 160 DIN flush-mounted distribution board, flush-mounting, partly assembled with assembly kit for built-in units, RAL 9016, IP31 DIN rail spacing 150 mm, without N/PE plug-in terminal, H=950mm W=800mm D=120mm protection class II, 6 rows for REG devices

SiemensMFR # 8GK1061-4KK30SKU # YLSWIMT848JVMBT

product brand nameALPHA

product designationWall-mounted cabinet

design of the productflush-mounted for built-in devices

surface processingpowder-coated

protection class IPIP31

operating resource protection classSafety class 2

Have questions?Chat on WhatsApp

About This Product

Siemens 8GK1061-4KK30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameALPHA

product designationWall-mounted cabinet

design of the productflush-mounted for built-in devices

surface processingpowder-coated

Protection class

protection class IPIP31

operating resource protection classSafety class 2

IK protection classIK08

suitability for interaction lightning protectionNo

suitability for use for outside useNo

Appearance

RAL color number9 016

cable entryYes

mounting plateNo

special product featureMasking frame H=1008mm B=858mm

product extension optional side-by-side mountingNo

number of DIN mounting bars18

number of rows6

Mechanical Design

height997 mm

width847 mm

depth120 mm

installation depth120 mm

number of modular width units72

number of modular width units per DIN mounting bar12

fastening methodflush mounting

Net Weight31.5 kg

material of the enclosureSteel

Accessories 30

Genuine accessories that can be used with the Siemens 8GK1061-4KK30 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8GK9910-0KK00	Aksesuar
8GK9910-0KK01	Aksesuar
8GK9120-0KK30	Aksesuar
8GF9661	Aksesuar
8GD9084	Aksesuar
8GK9561-0KK01	Aksesuar
8GK9001-5KK01	Aksesuar
8GK9001-4KK01	Aksesuar
8GK9002-0KK10	Aksesuar
8GK9001-3KK01	Aksesuar
8HP1805	Aksesuar
8GK9711-0KK03	Aksesuar
8GD9286	Aksesuar
8MF1000-2VU	Aksesuar
8GK9910-0KK36	Aksesuar
8MF1000-2VK	Aksesuar
8GK9918-0KK00	Aksesuar
8GK9910-1KK24	Aksesuar
8GK9910-0KK23	Aksesuar
8GK9910-0KK22	Aksesuar
8GK9001-6KK01	Aksesuar
8GS4034-4	Aksesuar
8GS4034-3	Aksesuar
8GS4034-1	Aksesuar
8GS4030-2	Aksesuar
8GK9560-0KK13	Aksesuar
8GK9560-0KK06	Aksesuar
8GK9560-0KK04	Aksesuar
8GD9132	Aksesuar
8GK9920-0KK33	Aksesuar
