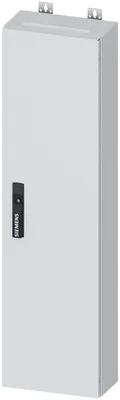

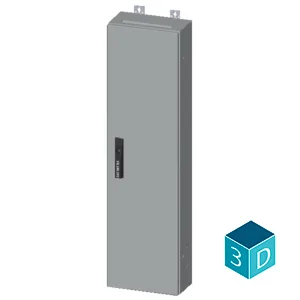

Siemens 8GK1052-5KK11

ALPHA 160, wall-mounted cabinet, Surface mounting, with distribution board panel, IP44, Protection class 2, H: 1100 mm, W: 300 mm, T: 140 mm, RAL 9016

SiemensMFR # 8GK1052-5KK11SKU # CEY-8EF3B03166F0

product brand nameALPHA

product designationWall-mounted cabinet

surface processingpowder-coated

protection class IPIP44

operating resource protection classSafety class 2

IK protection classIK08

Have questions?Chat on WhatsApp

About This Product

ALPHA 160, wall-mounted cabinet, Surface mounting, with distribution board panel, IP44, Protection class 2, H: 1100 mm, W: 300 mm, T: 140 mm, RAL 9016

Siemens 8GK1052-5KK11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameALPHA

product designationWall-mounted cabinet

design of the productSurface mounting, with distribution board panel

surface processingpowder-coated

Protection class

protection class IPIP44

operating resource protection classSafety class 2

IK protection classIK08

suitability for interaction lightning protectionYes

suitability for use for outside useNo

Appearance

RAL color number9 016

cable entryYes

mounting plateNo

product extension optional side-by-side mountingYes

number of DIN mounting bars7

number of rows7

Mechanical Design

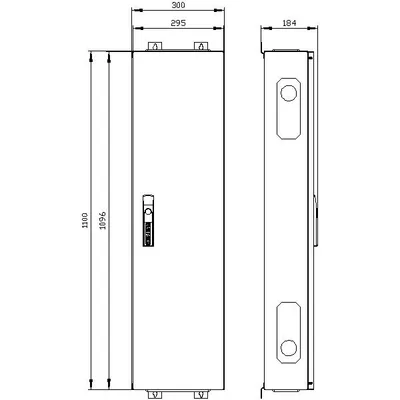

height1 100 mm

width300 mm

depth140 mm

installation depth140 mm

number of modular width units84

number of modular width units per DIN mounting bar12

fastening methodsurface mounting

Net Weight13 kg

material of the enclosureSteel

Accessories 31

Genuine accessories that can be used with the Siemens 8GK1052-5KK11 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
8GK9910-0KK00	Aksesuar
8GK9910-0KK01	Aksesuar
8GK9120-0KK30	Aksesuar
8GF9661	Aksesuar
8GD9084	Aksesuar
8GK9561-0KK01	Aksesuar
8GK9001-7KK01	Aksesuar
8GK9001-6KK01	Aksesuar
8GK9001-5KK01	Aksesuar
8GK9001-4KK01	Aksesuar
8GK9001-3KK01	Aksesuar
8HP1805	Aksesuar
8GK9711-0KK03	Aksesuar
8GD9286	Aksesuar
8MF1000-2VU	Aksesuar
8MF1000-2VK	Aksesuar
8GK9918-0KK00	Aksesuar
8GK9910-1KK24	Aksesuar
8GK9910-0KK23	Aksesuar
8GK9910-0KK22	Aksesuar
8GS4034-4	Aksesuar
8GS4034-3	Aksesuar
8GS4034-1	Aksesuar
8GS4030-2	Aksesuar
8GK9560-0KK13	Aksesuar
8GK9560-0KK06	Aksesuar
8GK9560-0KK04	Aksesuar
8GK9002-0KK10	Aksesuar
8GD9132	Aksesuar
8GK9910-0KK36	Aksesuar
8GK9920-0KK33	Aksesuar
