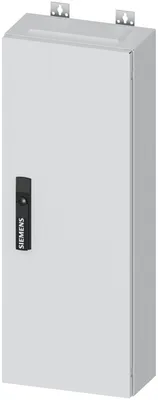

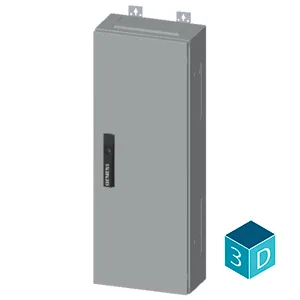

Siemens 8GK1052-3KK11

ALPHA 160, wall-mounted cabinet, Surface mounting, with distribution board panel, IP44, Protection class 2, H: 800 mm, W: 300 mm, T: 140 mm, RAL 9016

SiemensMFR # 8GK1052-3KK11SKU # CEY-8EF3B031651D

product brand nameALPHA

product designationWall-mounted cabinet

surface processingpowder-coated

protection class IPIP44

operating resource protection classSafety class 2

IK protection classIK08

Have questions?Chat on WhatsApp

About This Product

ALPHA 160, wall-mounted cabinet, Surface mounting, with distribution board panel, IP44, Protection class 2, H: 800 mm, W: 300 mm, T: 140 mm, RAL 9016

Siemens 8GK1052-3KK11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameALPHA

product designationWall-mounted cabinet

design of the productSurface mounting, with distribution board panel

surface processingpowder-coated

Protection class

protection class IPIP44

operating resource protection classSafety class 2

IK protection classIK08

suitability for interaction lightning protectionYes

suitability for use for outside useNo

Appearance

RAL color number9 016

cable entryYes

mounting plateNo

product extension optional side-by-side mountingYes

number of DIN mounting bars5

number of rows5

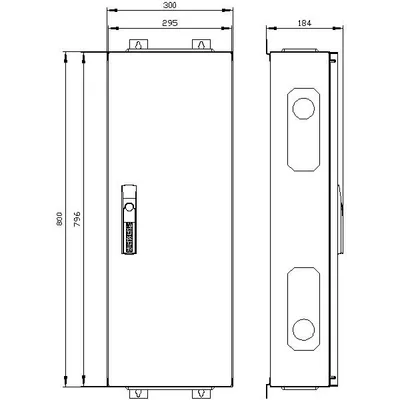

Mechanical Design

height800 mm

width300 mm

depth140 mm

installation depth140 mm

number of modular width units60

number of modular width units per DIN mounting bar12

fastening methodsurface mounting

Net Weight10.296 kg

material of the enclosureSteel
