Siemens 8GK1032-3KK31

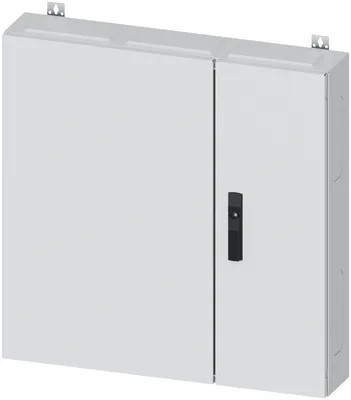

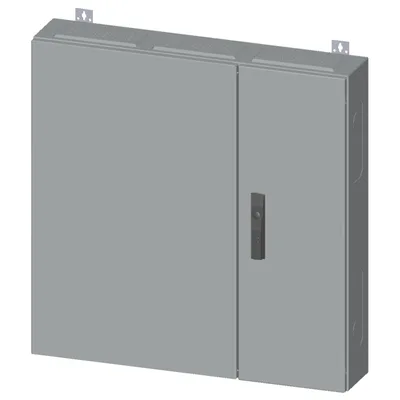

ALPHA 160, wall-mounted cabinet, IP44, Protection class 2, H: 800 mm, W: 800 mm, T: 140 mm, RAL 9016
product brand nameALPHA
product designationWall-mounted cabinet
design of the productSurface mounting
surface processingpowder-coated
protection class IPIP44
operating resource protection classSafety class 2
About This Product
ALPHA 160, wall-mounted cabinet, IP44, Protection class 2, H: 800 mm, W: 800 mm, T: 140 mm, RAL 9016
Siemens 8GK1032-3KK31
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product brand nameALPHA
product designationWall-mounted cabinet
design of the productSurface mounting
surface processingpowder-coated
Protection class
protection class IPIP44
operating resource protection classSafety class 2
IK protection classIK08
suitability for interaction lightning protectionYes
suitability for use for outside useNo
Appearance
RAL color number9 016
cable entryYes
mounting plateNo
product extension optional side-by-side mountingYes
number of rows15
Mechanical Design

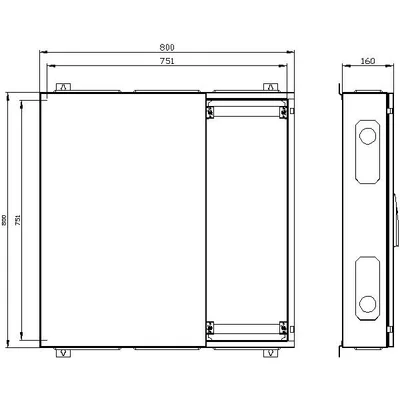

height800 mm
width800 mm
depth140 mm
installation depth140 mm
number of modular width units180
number of modular width units per DIN mounting bar12
fastening methodsurface mounting
Net Weight16 kg
material of the enclosureSteel
Accessories 30
Genuine accessories that can be used with the Siemens 8GK1032-3KK31 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| 8GK9910-0KK00 | Aksesuar | |
| 8GK9910-0KK36 | Aksesuar | |
| 8GK9910-0KK01 | Aksesuar | |
| 8GK9120-0KK30 | Aksesuar | |
| 8GF9661 | Aksesuar | |
| 8GD9084 | Aksesuar | |
| 8GK9561-0KK01 | Aksesuar | |
| 8GK9001-4KK01 | Aksesuar | |
| 8GK9001-3KK01 | Aksesuar | |
| 8HP1805 | Aksesuar | |
| 8GK9711-0KK03 | Aksesuar | |
| 8GD9286 | Aksesuar | |
| 8MF1000-2VU | Aksesuar | |
| 8MF1000-2VK | Aksesuar | |
| 8GK9920-0KK33 | Aksesuar | |
| 8GK9910-1KK24 | Aksesuar | |
| 8GK9910-0KK23 | Aksesuar | |
| 8GK9910-0KK22 | Aksesuar | |
| 8GK9001-5KK01 | Aksesuar | |
| 8GS4034-4 | Aksesuar | |
| 8GS4034-3 | Aksesuar | |
| 8GS4034-1 | Aksesuar | |
| 8GS4030-2 | Aksesuar | |
| 8GK9560-0KK13 | Aksesuar | |
| 8GK9560-0KK06 | Aksesuar | |
| 8GK9560-0KK04 | Aksesuar | |
| 8GK9002-0KK10 | Aksesuar | |
| 8GD9132 | Aksesuar | |
| 8GK9918-0KK00 | Aksesuar | |
| 8GK4851-5KK00 | Seçmeli zorunlu ürün |
