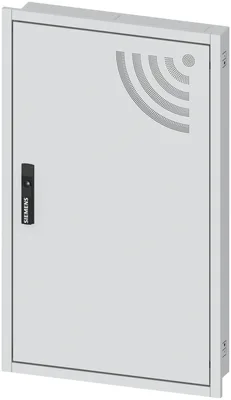

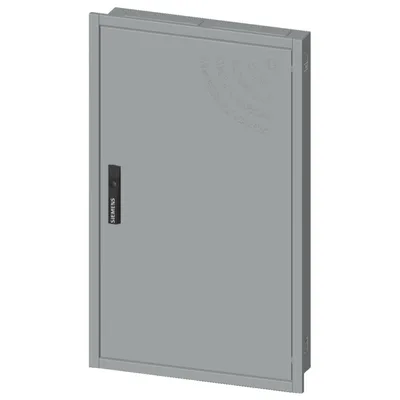

Siemens 8GK1031-4KK20

ALPHA 160 DIN flush-mounted board SK2, h=950 w=550 d=120

SiemensMFR # 8GK1031-4KK20SKU # YLSGWROPWK7DJXY

product brand nameALPHA

product designationWall-mounted cabinet

design of the productflush-mounted empty cabinet

surface processingpowder-coated

protection class IPIP31

operating resource protection classSafety class 2

Have questions?Chat on WhatsApp

About This Product

Siemens 8GK1031-4KK20 (ALPHA 160 DIN flush-mounted board SK2, h=950 w=550 d=120) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 8GK1031-4KK20 — price, stock availability and technical specifications.

Siemens 8GK1031-4KK20

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameALPHA

product designationWall-mounted cabinet

design of the productflush-mounted empty cabinet

surface processingpowder-coated

Protection class

protection class IPIP31

operating resource protection classSafety class 2

IK protection classIK08

suitability for interaction lightning protectionNo

suitability for use for outside useNo

Appearance

RAL color number9 016

cable entryYes

mounting plateNo

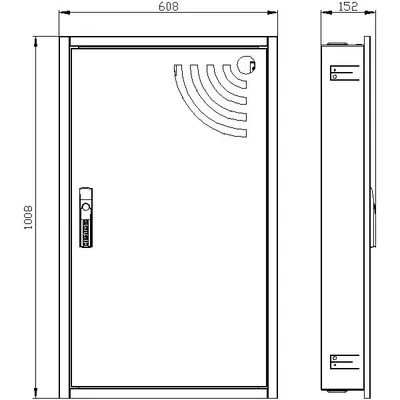

special product featureMasking frame H=1008mm B=608mm

product extension optional side-by-side mountingNo

number of DIN mounting bars0

number of rows12

Mechanical Design

height997 mm

width597 mm

depth120 mm

installation depth120 mm

number of modular width units144

number of modular width units per DIN mounting bar12

fastening methodflush mounting

Net Weight17.5 kg

material of the enclosureSteel
