Siemens 8GK1031-1KK11

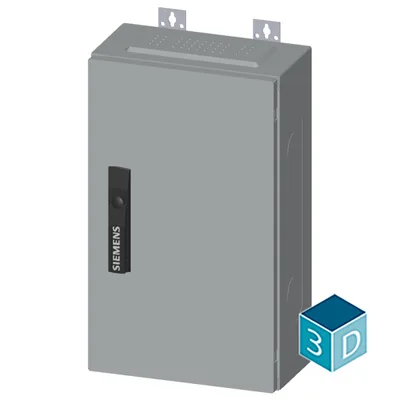

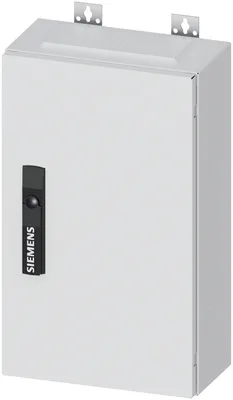

ALPHA 160, wall-mounted cabinet, Flush-mounting, IP31, type of protection 2, H: 500 mm, W: 300 mm, T: 140 mm, RAL 9016
product brand nameALPHA
product designationWall-mounted cabinet
design of the productFlush mounting
surface processingpowder-coated
protection class IPIP31
operating resource protection classSafety class 2
About This Product
ALPHA 160, wall-mounted cabinet, Flush-mounting, IP31, type of protection 2, H: 500 mm, W: 300 mm, T: 140 mm, RAL 9016
Siemens 8GK1031-1KK11
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product brand nameALPHA
product designationWall-mounted cabinet
design of the productFlush mounting
surface processingpowder-coated
Protection class
protection class IPIP31
operating resource protection classSafety class 2
IK protection classIK08
suitability for interaction lightning protectionYes
suitability for use for outside useNo
Appearance
RAL color number9 016
cable entryYes
mounting plateNo
product extension optional side-by-side mountingNo
number of rows3
Mechanical Design
height513 mm
width312 mm
depth140 mm
installation depth140 mm
number of modular width units36
number of modular width units per DIN mounting bar12
fastening methodflush mounting
Net Weight7.2 kg
material of the enclosureSteel
Accessories 27
Genuine accessories that can be used with the Siemens 8GK1031-1KK11 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| 8GK9910-0KK00 | Aksesuar | |
| 8GK9910-0KK01 | Aksesuar | |
| 8GK9120-0KK30 | Aksesuar | |
| 8GF9661 | Aksesuar | |
| 8GD9084 | Aksesuar | |
| 8GK9561-0KK01 | Aksesuar | |
| 8HP1805 | Aksesuar | |
| 8GK9711-0KK03 | Aksesuar | |
| 8GD9286 | Aksesuar | |
| 8MF1000-2VU | Aksesuar | |
| 8MF1000-2VK | Aksesuar | |
| 8GK9918-0KK00 | Aksesuar | |
| 8GK9910-1KK24 | Aksesuar | |
| 8GK9910-0KK23 | Aksesuar | |
| 8GK9910-0KK22 | Aksesuar | |
| 8GS4034-4 | Aksesuar | |
| 8GS4034-3 | Aksesuar | |
| 8GS4034-1 | Aksesuar | |
| 8GS4030-2 | Aksesuar | |
| 8GK9560-0KK13 | Aksesuar | |
| 8GK9560-0KK06 | Aksesuar | |
| 8GK9560-0KK04 | Aksesuar | |
| 8GK9002-0KK10 | Aksesuar | |
| 8GK9001-3KK01 | Aksesuar | |
| 8GD9132 | Aksesuar | |
| 8GK9910-0KK36 | Aksesuar | |
| 8GK9920-0KK33 | Aksesuar |
